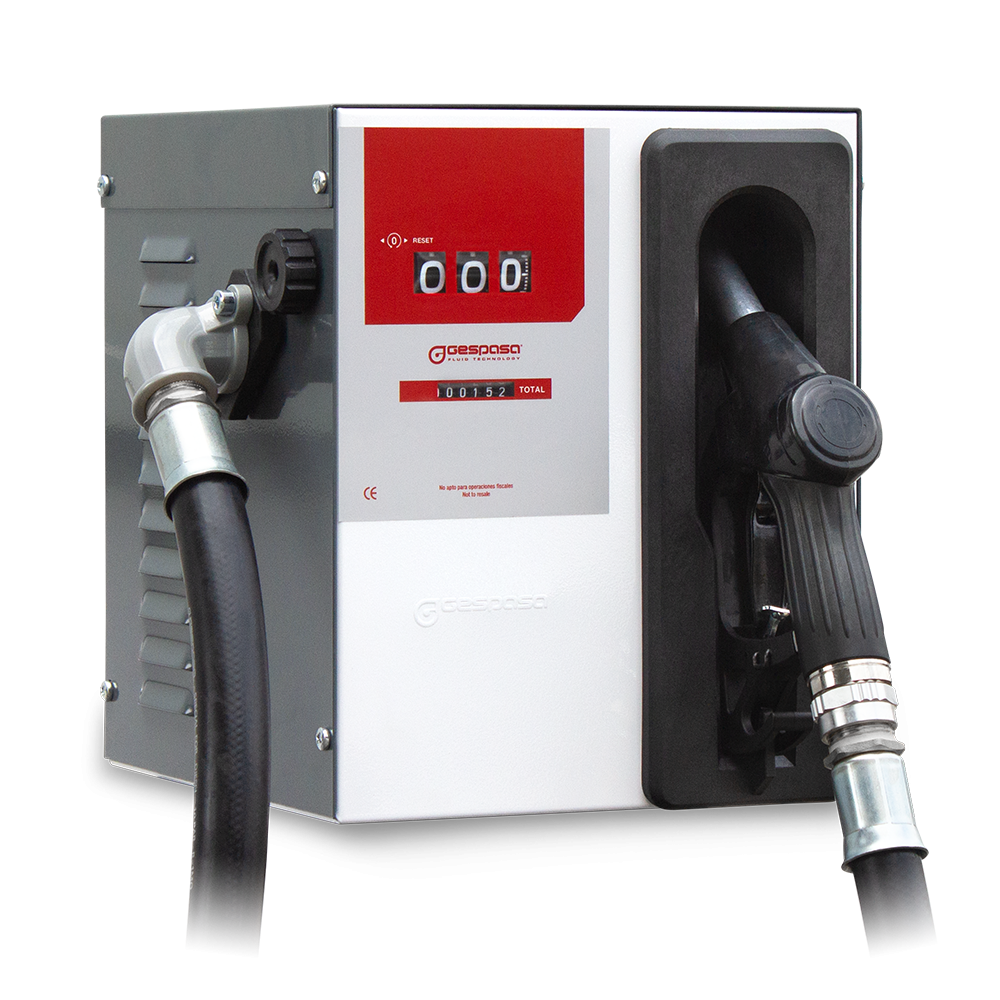

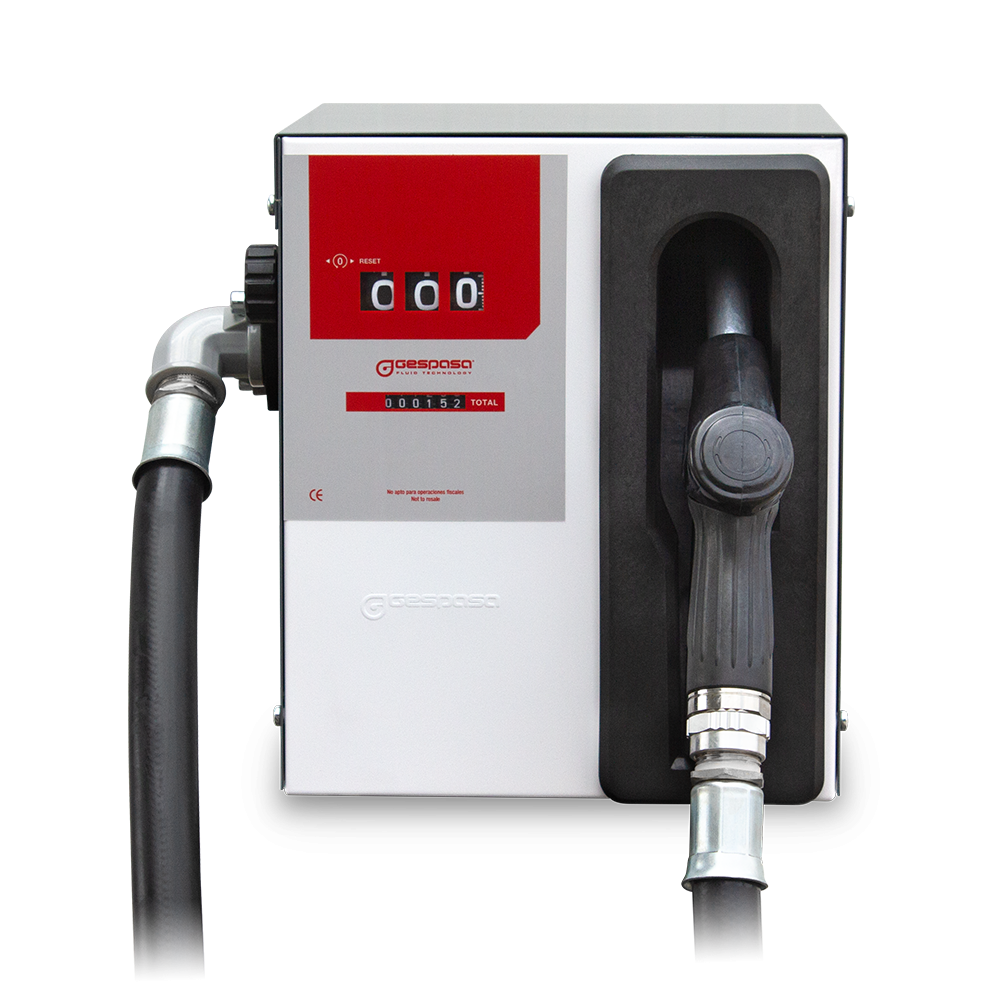

Mechanical compact supply kits suitable for the diesel or petrol transfer to own consumption vehicles.

Composed of:

CHASSIS:

• made of steel
• interior and exterior treatment to protect against corrosion
• high epoxid paint
• weatherproof

PUMP:

• self-suction with self-adjusting blades

METER:

• MG-80 mechanical meter · Accuracy ±1 %

NOZZLE:

• automatic

HOSE:

4 m delivery diesel hose double layer, with adapters in both end

• IRON-50 12 VDC · Flow: 35-45 l/min

Size and weight (approx.):

• Dim.: 380x345x360 mm (LxWxH)
• Weight: 18 kg

• IRON-50 230 VAC · Flow: 40-50 l/min

Size and weight (approx.):

• Dim.: 380x345x360 mm (LxWxH)
• Weight: 21 kg

• IRON-75 230 VAC · Flow: 65-70 l/min

Size and weight (approx.):

• Dim.: 380x345x360 mm (LxWxH)
• Weight: 21 kg

• AG-90 12 VDC · Flow: 70-80 l/min

Size and weight (approx.):

• Dim.: 383x345x360 mm (LxWxH)
• Weight: 28.5 kg

• AG-100 230 VAC · Flow: 75-85 l/min

Size and weight (approx.):

• Dim.: 383x435x360 mm (LxWxH)
• Weight: 32 kg
