Diesel

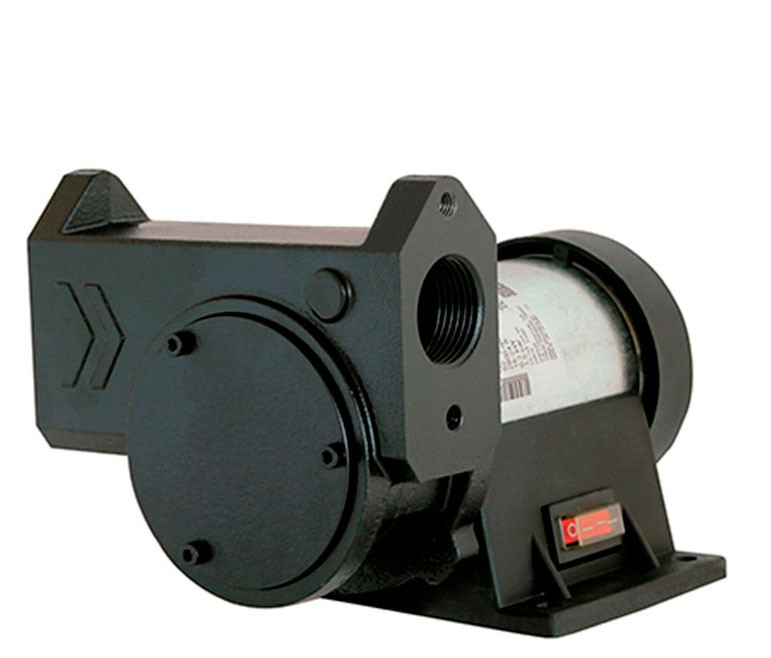

IRON-50 12 or 24 VDC

Blade self-suction · 50 l/min

IRON-50 12 VDC · 50 l/min

00001

IRON-50 24 VDC · 50 l/min

00011

Self-suction - self-priming. Eccentric of self-adjusting blades
With recirculation bypass
Suction: 2.7 m · Delivery: 20 m
Priming pipe suction: 5 m
Free flow: 50 l/min
Consumption: 18-24 A (12 VDC) and 9-17 A (24 VDC)
Motor: 0.30 kW (12 and 24 VDC) self-ventilated · dust protected
S2 30´ duty
3,000 rpm
Bypass pressure: 1.2 bar
Connection through F1" (BSP) threads and flanges
It has built in a cleaning steel filter of 350 µm (micron).
ON/OFF luminous switch with IP-55 protection
2 m cable with clamps
Anti-rust treatment

Size and weight (approx.):

Dim.: 160x200x137 mm (lenght x width x height)
Weight: 4.5 kg

S-50 12 or 24 VDC 50 l/min · Pump with litre meter

S-50 12 or 24 VDC 50 l/min · Pump with litre meter

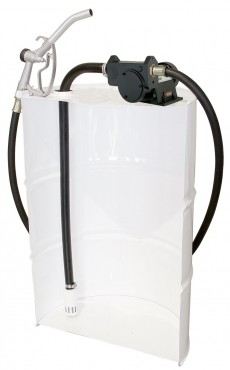

HORIZONTAL COMPLETE KITS WITH IRON-50 12 or 24 VDC PUMP

HORIZONTAL COMPLETE KITS WITH IRON-50 12 or 24 VDC PUMP

DIESEL BATTERY KIT

DIESEL BATTERY KIT

12 or 24 VDC 50 l/min

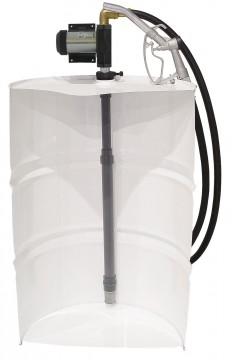

VERTICAL COMPLETE KITS WITH TELESCOPIC TUBE AND IRON-50 12 or 24 VDC PUMP

VERTICAL COMPLETE KITS WITH TELESCOPIC TUBE AND IRON-50 12 or 24 VDC PUMP
