Diesel

Petrol

AdBlue/DEF

MG-80 · MECHANICAL

15-90 l/min · ±1 %

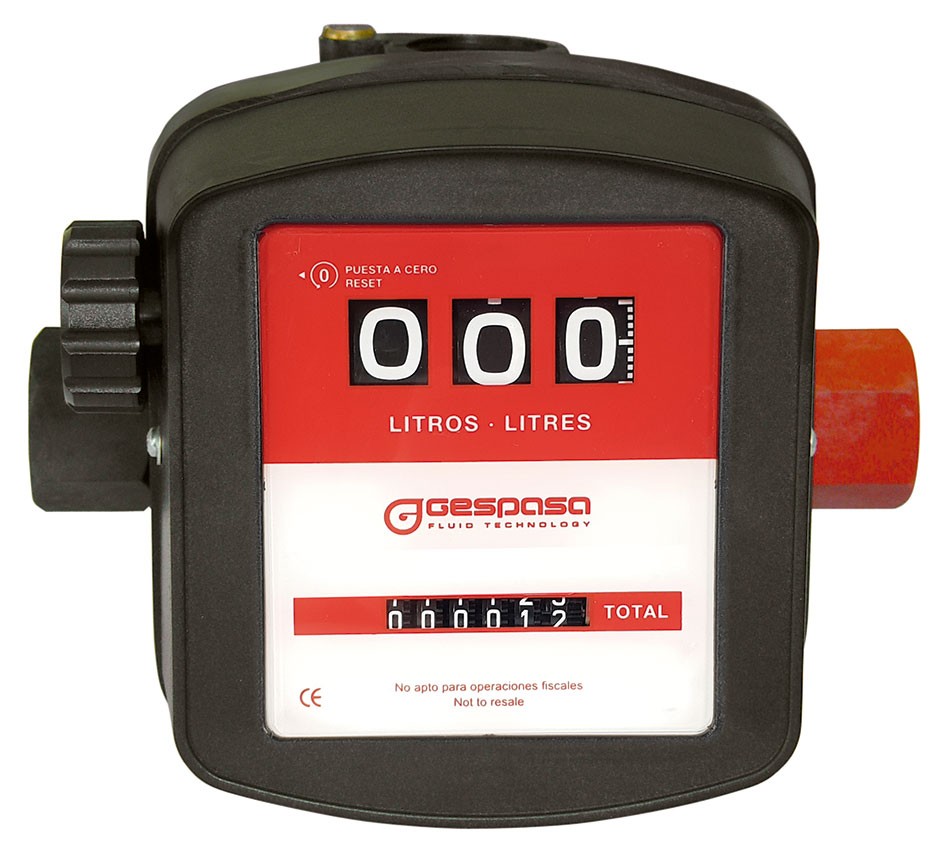

MG-80 · Mechanical meter

32000-CF00000

MG-80V · Mechanical meter with viton joints

32070-CF00000

Fireproof measuring chamber with oscillant disc
Flow: 10-90 l/min
Accuracy: ±1 %
Partial indicator of 3 digits and totalizer of 6 digits
Maximum operation pressure: 3,5 bar
Maximum temperature: 60 ºC
Minimum temperature: -10 ºC
Polyamide + Fibreglass housing
Connection 1" GAS (BSP) with 3 inlets and 2 outlets
It is supplied with 2 additional Male/Female 1" GAS (BSP) adapters (other threads under order). The 1" GAS (BSP) red adapter has built-in the filter-sieve of 350 µm (micron).
It is suitable for hydrocarbon liquid (please, consult other liquids).
For private use, not suitable for fiscal operations

Size and weight (approx.):

Dim.: 150x150x170 mm (length x width x height)
Weight: 1.6 kg
