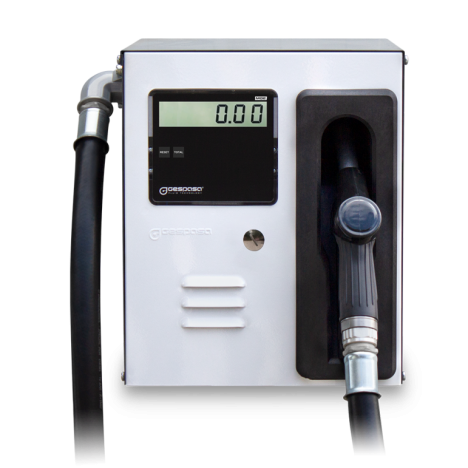

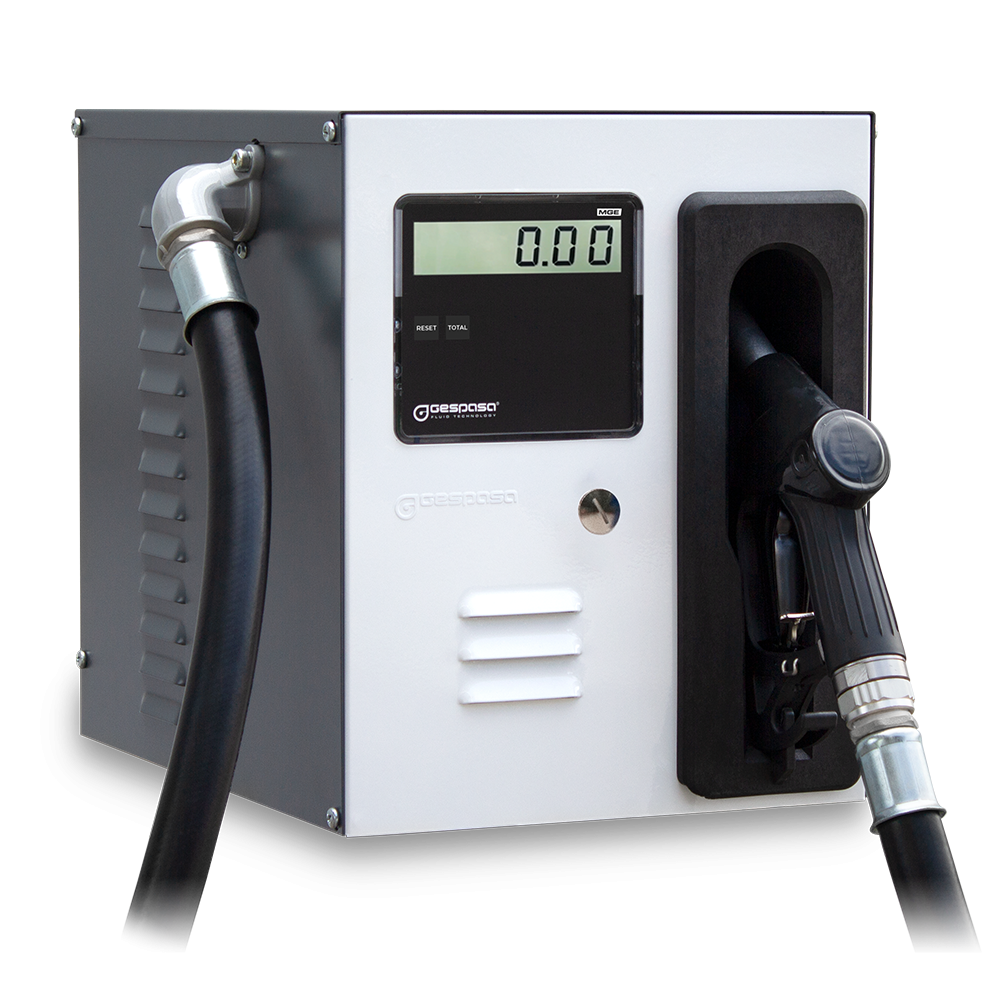

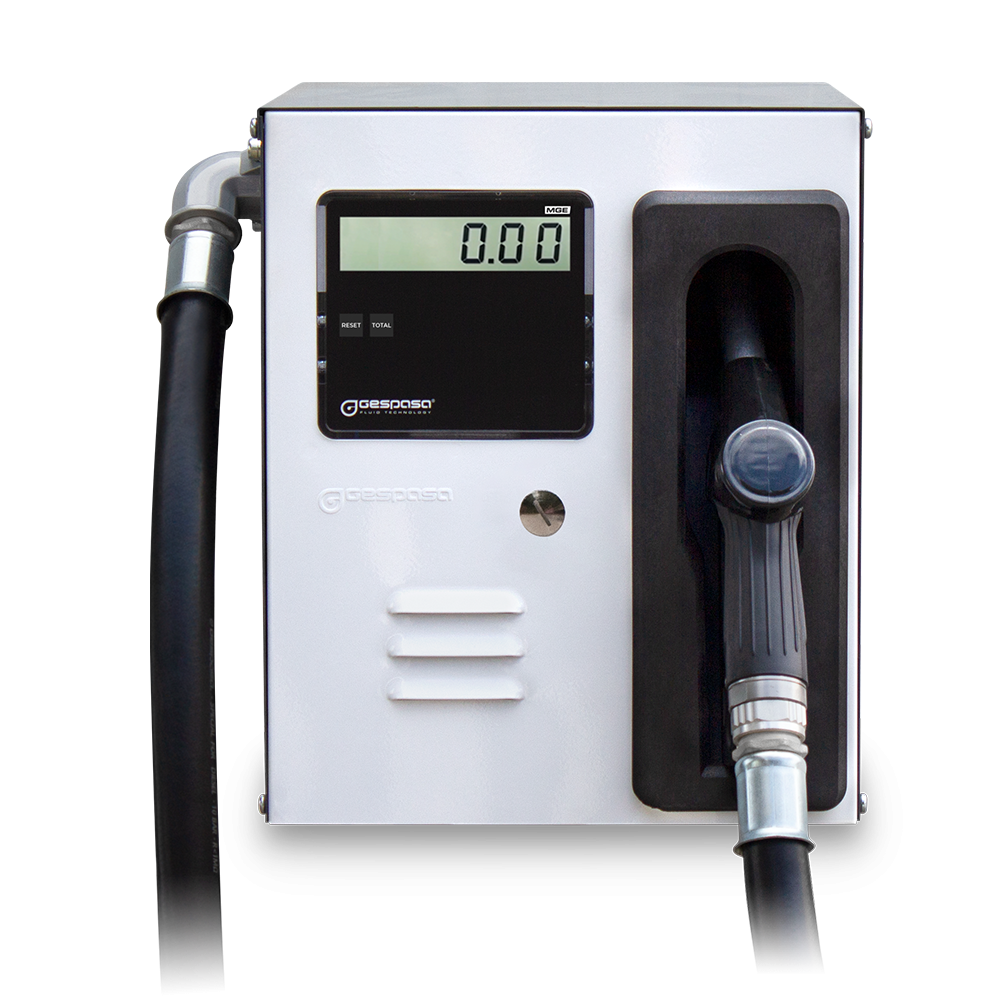

COMPACT E · ELECTRONIC SUPPLY KITS

Compact supply kits with high accuracy gear meter and electronic display with lithium battery.
Automatic pump starting and stopping through the nozzle holder switch.

Composed of:

CHASSIS:

PUMP:

PULSER:

DISPLAY

Tropicalised electronics. With standard lithium battery of approx. 4 years of life

NOZZLE:

HOSE:

COMPACT 50E-12 V · Electronic supply kit

28240-CF00000

COMPACT 50E-230 V · Electronic supply kit

28052-CF00000

COMPACT 75E-230 V · Electronic supply kit

28290-CF00000

COMPACT 90E-12 V · Electronic supply kit

28250-CF00000

COMPACT 100E-230 V · Electronic supply kit

28300-CF00000

	Voltage	Electronic meter	Automatic nozzle	Flow (l/min)	Size and weight (approx.)
COMPACT 50E-12	12 VDC	MGE-110	PA-60	35-45	405x460x405 mm	17.5 kg
COMPACT 50E-230	230 VAC		PA-60	40-50		20.5 kg
COMPACT 75E-230	230 VAC		PA-80	65-70		20.5 kg
COMPACT 90E-12	12 VDC		PA-80	70-80		37 kg
COMPACT 100E-230	230 VAC		PA-120	75-85		37.5 kg

Optional:

800400014

- F1" aluminium flange kit

800003029
