Diesel

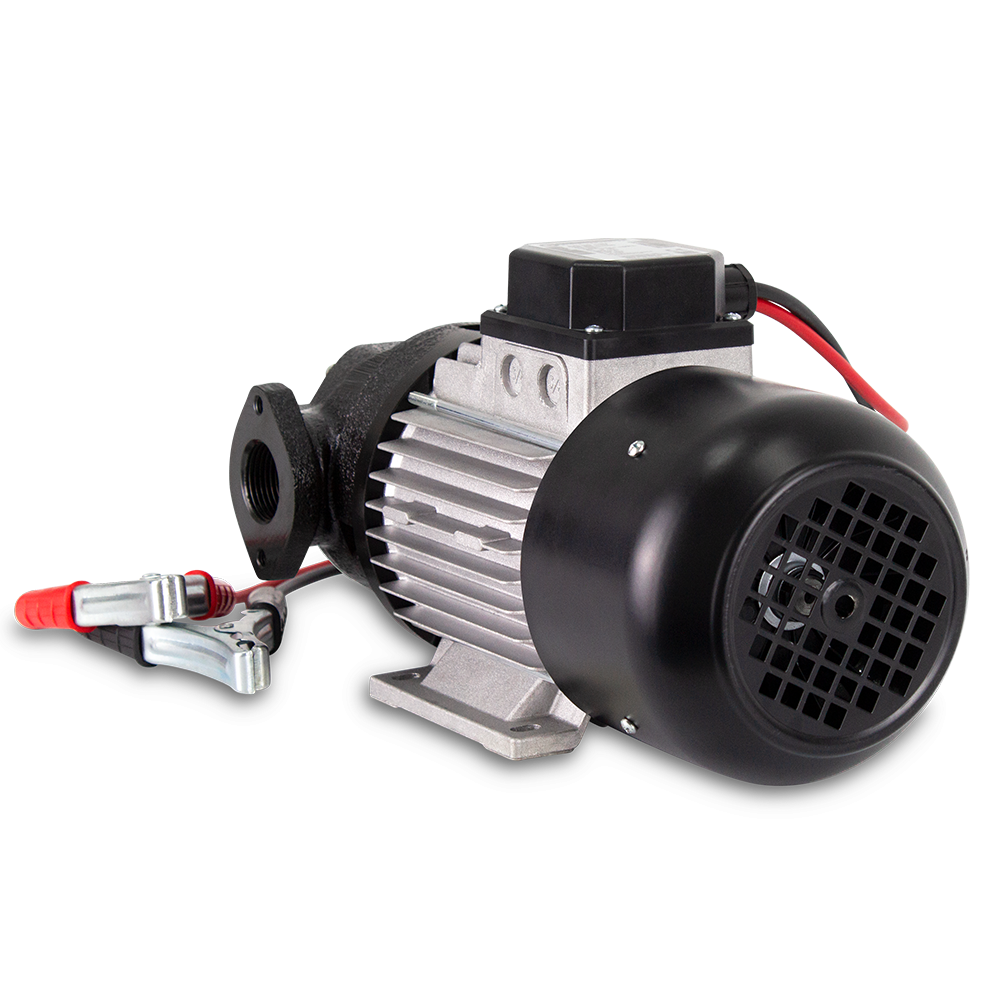

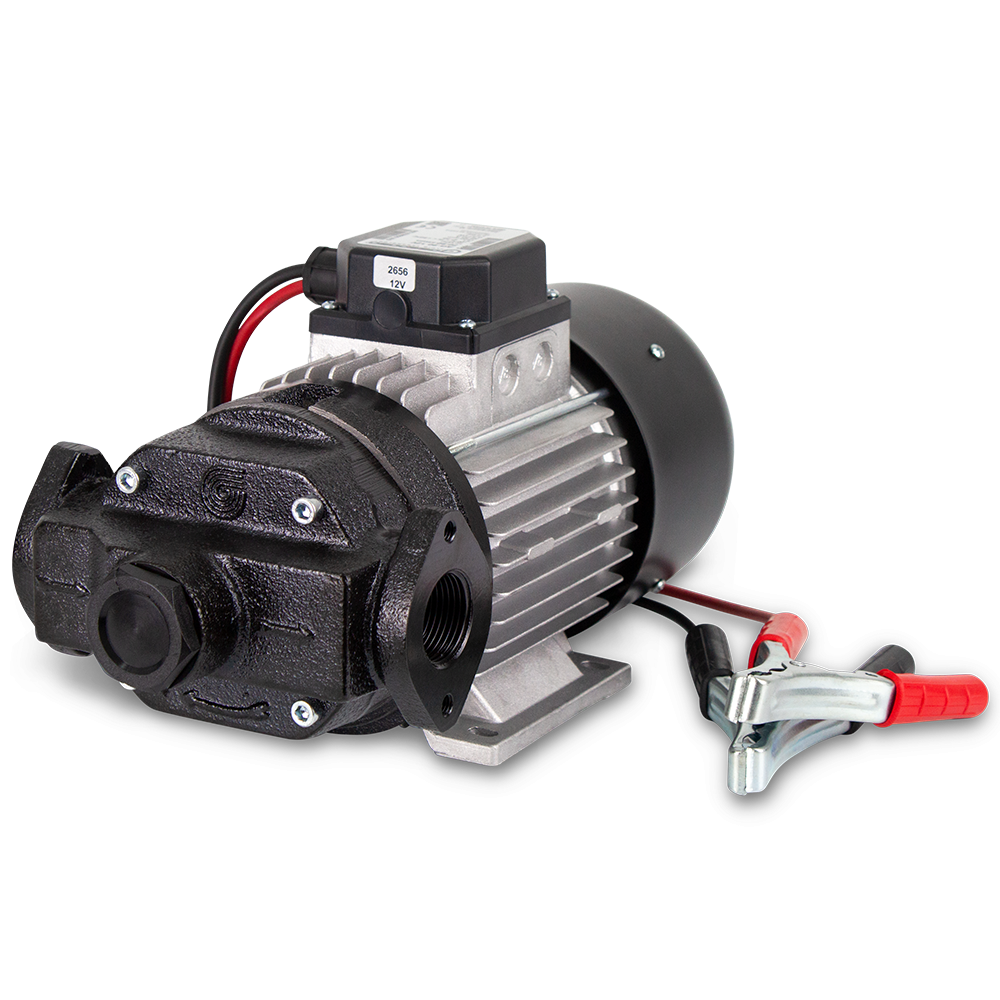

AG-90 12 or 24 VDC

Self-suction with blades · 0,37 kW · 80 l/min

AG-90 12 VDC · 70-80 l/min

00040

AG-90 24 VDC · 70-80 l/min

00050

AG-90 12 VDC WITH SWITCH · 70-80 l/min

00042

AG-90 24 VDC WITH SWITCH · 70-80 l/min

00052

Self-suction - self-priming. Eccentric of self-adjusting blades
With recirculation bypass
Suction: 2.7 m · Delivery: 20 m
Priming pipe suction: 5 m
Free flow: 70-80 l/min
Consumption: 35-53 A (12 VDC) and 24-32 A (24 VDC)
Motor: 0.37 kW (12 and 24 VDC) self-ventilated, dust protected
1,500 rpm
Continuous duty
Tropicalized
IP-55 Protection
Connection through F1" (BSP) threads and flanges
3 m cable with clamps
Anti-rust treatment

Size and weight (approx.):

Size: 350x165x175 mm (length x width x height)
Weight: 15,5 kg

Optional:

- F1" aluminium flange complete kit with DIN.912 ALLEN screw

800003022

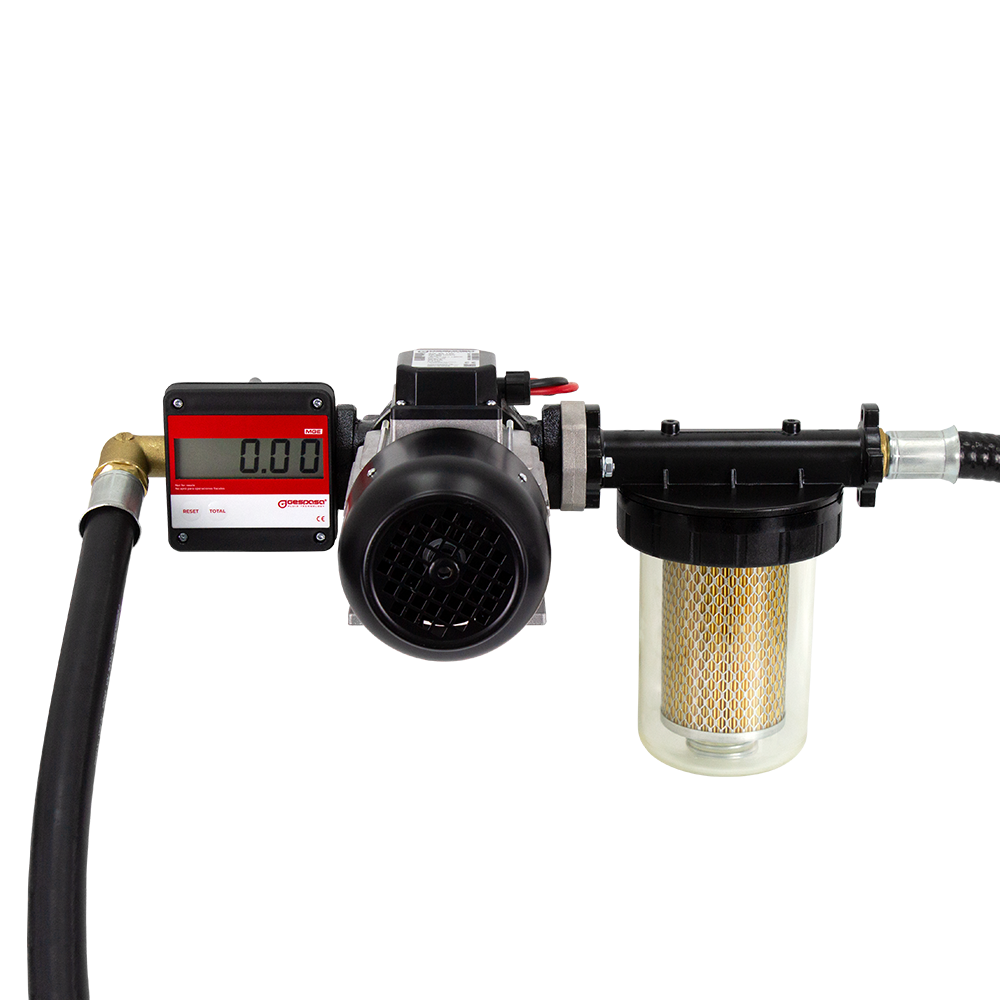

SAG-90 12 or 24 VDC 80 l/min · Pump with litre meter

SAG-90 12 or 24 VDC 80 l/min · Pump with litre meter

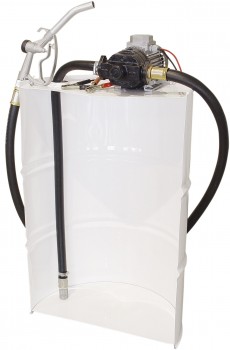

HORIZONTAL COMPLETE KITS WITH AG-90 PUMP

HORIZONTAL COMPLETE KITS WITH AG-90 PUMP

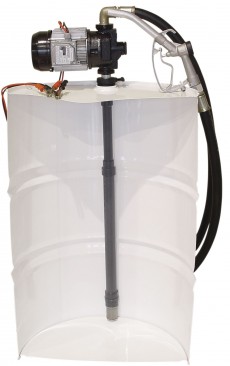

VERTICAL COMPLETE KITS WITH TELESCOPIC TUBE AND AG-90 PUMP

VERTICAL COMPLETE KITS WITH TELESCOPIC TUBE AND AG-90 PUMP
