Diesel

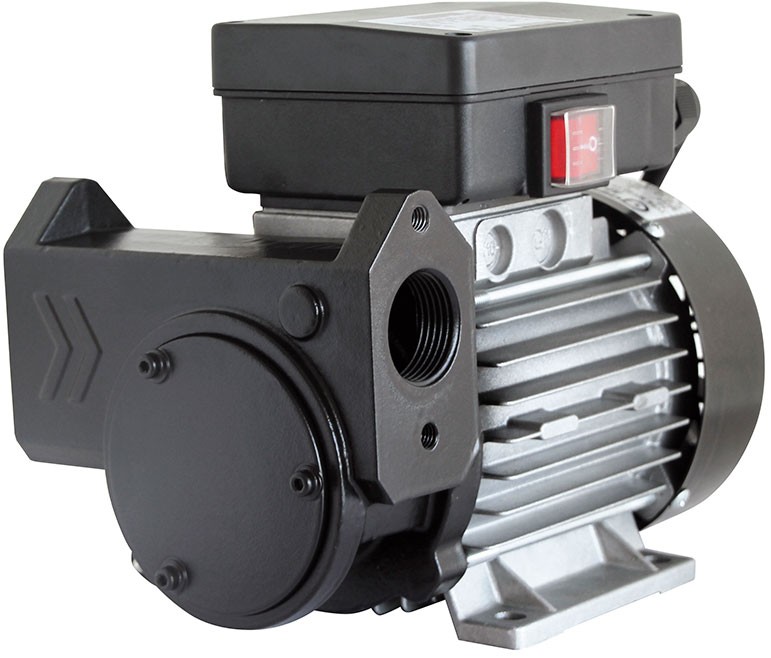

IRON-50 230 VAC

Self-suction with blades · 0.25 kW · 50 l/min

IRON-50 230 VAC · 50 l/min

00190

Self-suction - self-priming. Eccentric of self-adjusting blades
With recirculation bypass
Suction: 2.7 m · Delivery: 30 m
Priming pipe suction: 5 m
Free flow: 50 l/min
Consumption: 1.2-2 A
Motor: 0.25 kW 230 VAC self-ventilated 50/60 Hz single-phase with thermal protector
S1 Continuous duty
IP-55 Protection
3,000 rpm
Connection through F1" (BSP) threads and flanges
It has built in a cleaning steel filter of 350 µm (micron).
ON/OFF luminous switch with IP-55 protection
3 m electric cable with homologated plug
Anti-rust treatment

Size and weight (approx.):

Dim.: 146x225x185 mm (length x width x height)
Weight: 8.50 kg

Optional:

- F1" aluminium flange complete kit with DIN.912 ALLEN screw

800003022

S-50 230 VAC 50 l/min · Pump with litre meter

S-50 230 VAC 50 l/min · Pump with litre meter

KIT EQUIPE

KITS + CABINET

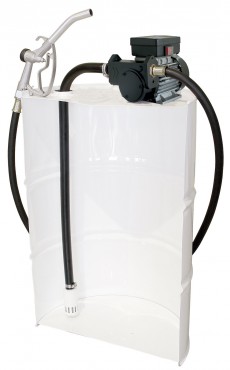

HORIZONTAL COMPLETE KITS WITH IRON-50 230 VAC PUMP

HORIZONTAL COMPLETE KITS WITH IRON-50 230 VAC PUMP

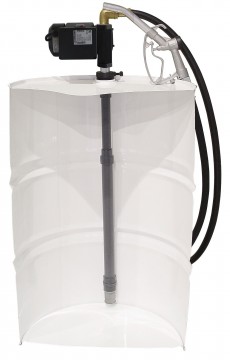

VERTICAL COMPLETE KITS WITH TELESCOPIC TUBE AND IRON-50 230 VAC PUMP

VERTICAL COMPLETE KITS WITH TELESCOPIC TUBE AND IRON-50 230 VAC PUMP

IRON-50 12 or 24 VDC
