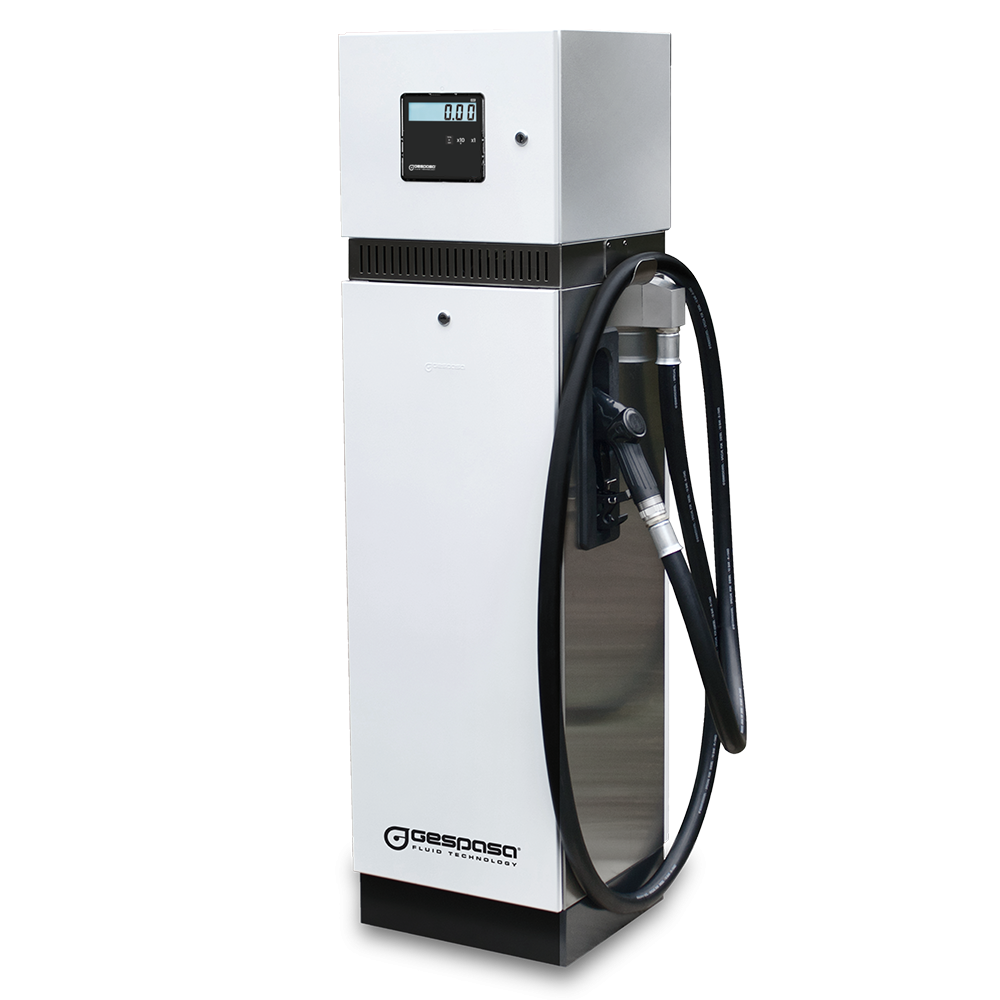

TOTEM · Pump dispenser

Diesel

NEW

TOTEM GE · ELECTRONIC SUPPLY KITS

litre preset

TOTEM electronic supply kits with high accuracy gear meter and electronic display at 230 V
Connection to external control kits. It allows the direct connection through protocol with the GESPASA controllers, mod. GK-7, using a single cable. It has a pulse output to connect it to any trademark control equipment.
Automatic pump starting and stopping through the nozzle hanger switch.

It is composed of:

CHASSIS

Column for its direct fixation to the ground without bases or additional accessories
Main body made of stainless steel, doors and heading made of steel with polyurethane paint
Interior and exterior treatment to protect against corrosion
Weatherproof

PUMP

self-suction with self-adjusting blades

PULSER

MGI-110 · 90º Hall Effect · Accuracy ±0.5 %

ELECTRONIC DISPLAY

GE · 6-digit electronic console with luminous display of liquid crystal powered at 230 VAC.

NOZZLE

automatic

HOSE

4 m delivery diesel hose double layer, with adapters in both ends

TOTEM 50GE-230 · Electronic supply kit with volume preset

27192-CF00000

IRON-50 230 VAC self-suction with self-adjusting blades
Flow rate: 40-50 l/min

Size and weight (approx.):

Dim.: 460x400x1,500 mm (length x width x height)
Weight: 50 kg

TOTEM 75GE-230 · Electronic supply kit with volume preset

27282-CF00000

IRON-75 230 VAC self-suction with self-adjusting blades
Flow rate: 65-70 l/min

Size and weight (approx.):

Dim.: 460x400x1,500 mm (length x width x height)
Weight: 50 kg

TOTEM 100GE-230 · Electronic supply kit with volume preset

27293-CF00000

AG-100 230 VAC self-suction with self-adjusting blades
Flow rate: 75-90 l/min

Size and weight (approx.):

Dim.: 460x400x1,500 mm (length x width x height)
Weight: 57 kg
