USE

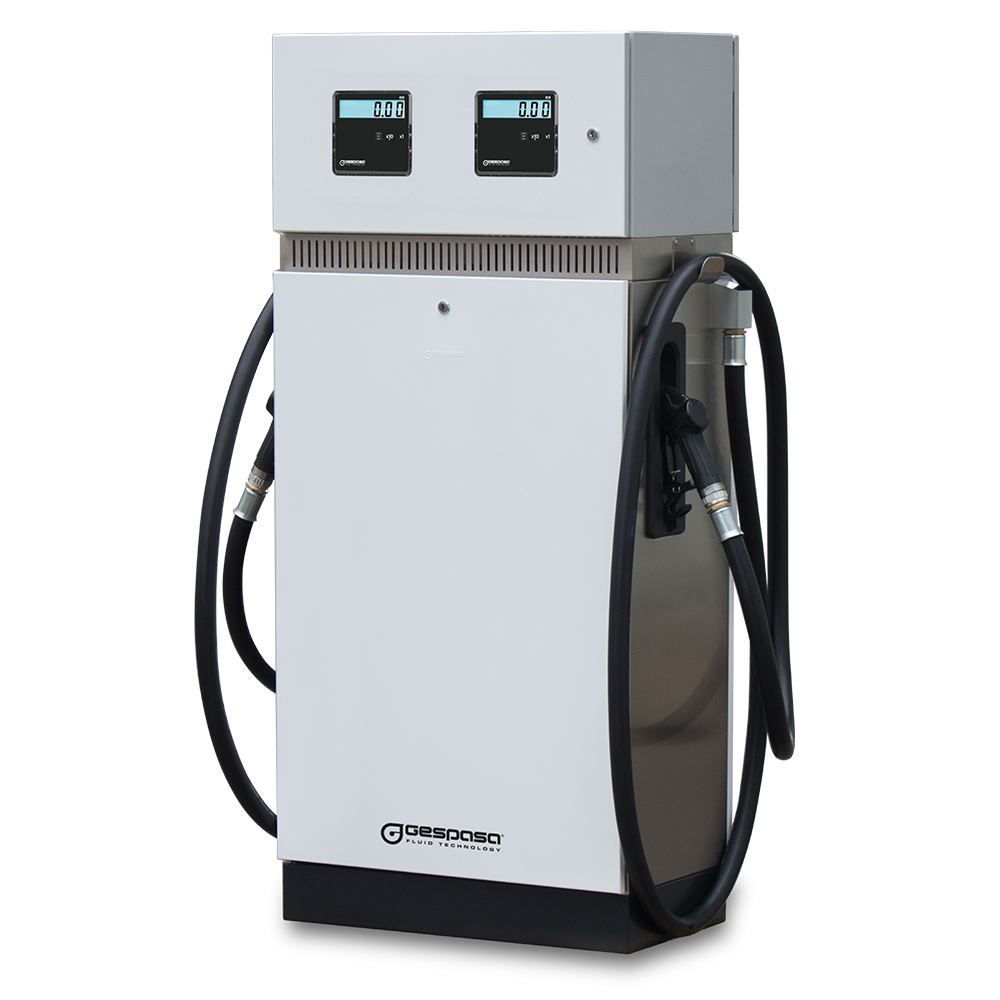

• Electronic double supply kits with ATEX components special for supply installations of diesel, petrol and kerosene.
• Composed of two high accuracy hydraulic groups
• It is possible to connect it to a GK-7M controller through the RS485 communication bus and the GESPASA communication protocol.
• They are suitable for transport companies, private vehicle fleet, agricultural companies, public works and so on.

Composed of:

CHASSIS:

• Made of steel.
• Finish with brilliant Epoxy paint
• Special interior and exterior corrosion treatment
• Weatherproof

2 Hydraulic groups composed of:

• Pump: Self-suction, eccentric of self-adjusting blades with gas separator · Free flow: 70-80 l/min or 110 l/min · recirculation bypass valve · filter
• Meter: 4-piston made of aluminium with positive movement · Accuracy: ±0.2 % · 2-channel pulser of 100 pulses per litre and mechanical totalisator
• Motor: 1 kW 230/400 VAC or 230 VAC (triphase or single-phase) · EExd motor with ATEX certificate, with IP-55 protection

    STE-110GED model: 1.5 kW 230/400 VAC (triphase) · EExd motor with ATEX certificate, with IP-55 protection

2 ELECTRONIC DISPLAYS

• GE· 6-digit electronic tropicalised console with luminous display at 230 V

It is supplied with:

- 2 x 4 m Ø25 mm double layer delivery antistatic hose special for diesel with adapters
- 2 automatic nozzles
