USE

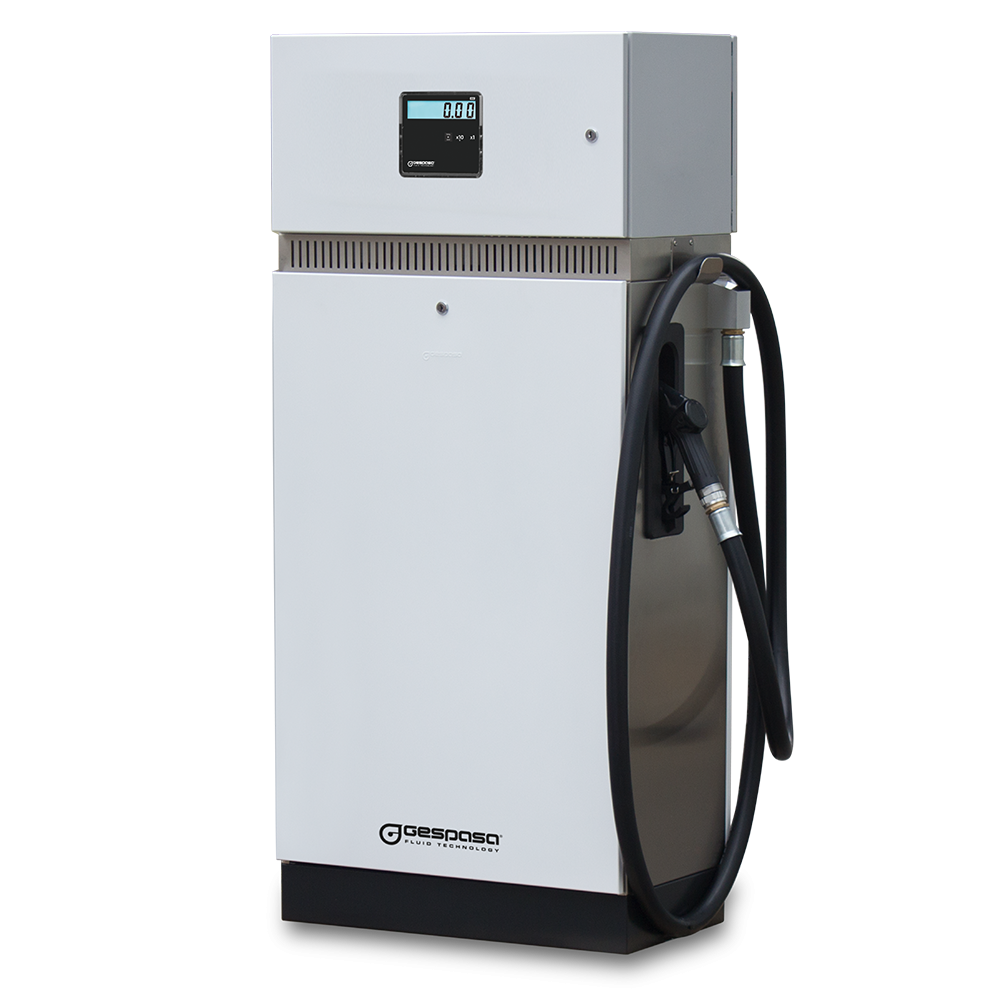

- Electronic supply kit with ATEX components special for supply installations of diesel, petrol and kerosene.
- Composed of one high accuracy hydraulic group
- It is possible to connect it to a GK-7M controller through the RS485 communication bus and the GESPASA communication protocol.
- They are suitable for transport companies, private vehicle fleet, agricultural companies, public works and so on.
Composed of:
CHASSIS:
- Main body made of stainless steel, doors and heading made of steel with polyurethane paint
- Special interior and exterior corrosion treatment
- Weatherproof
Hydraulic group composed of:
- Pump: Self-suction, eccentric with self-adjusting blades with gas separator. Flow: 80 or 110 l/min · Recirculation bypass valve · filter
- Meter: made of aluminium of 4 pistons with positive displacement · Accuracy: ±0.2 % · Pulser of 2 channels of 100 pulses per litre · Mechanical totalisator
- EExd Motor with ATEX certificate · IP-55 protection:
- Triphase 80 l/min: 1 kW 230/400 VAC
- Single-phase 80 l/min: 1 kW 230 VAC
- Triphase 110 l/min: 1,5 kW 230/400 VAC
ELECTRONIC DISPLAY
- GE· 6-digit electronic tropicalised console with luminous display at 230 V
It is supplied with:
- 4 m Ø25 mm double layer delivery antistatic hose special for diesel with adapters
- Automatic nozzle
