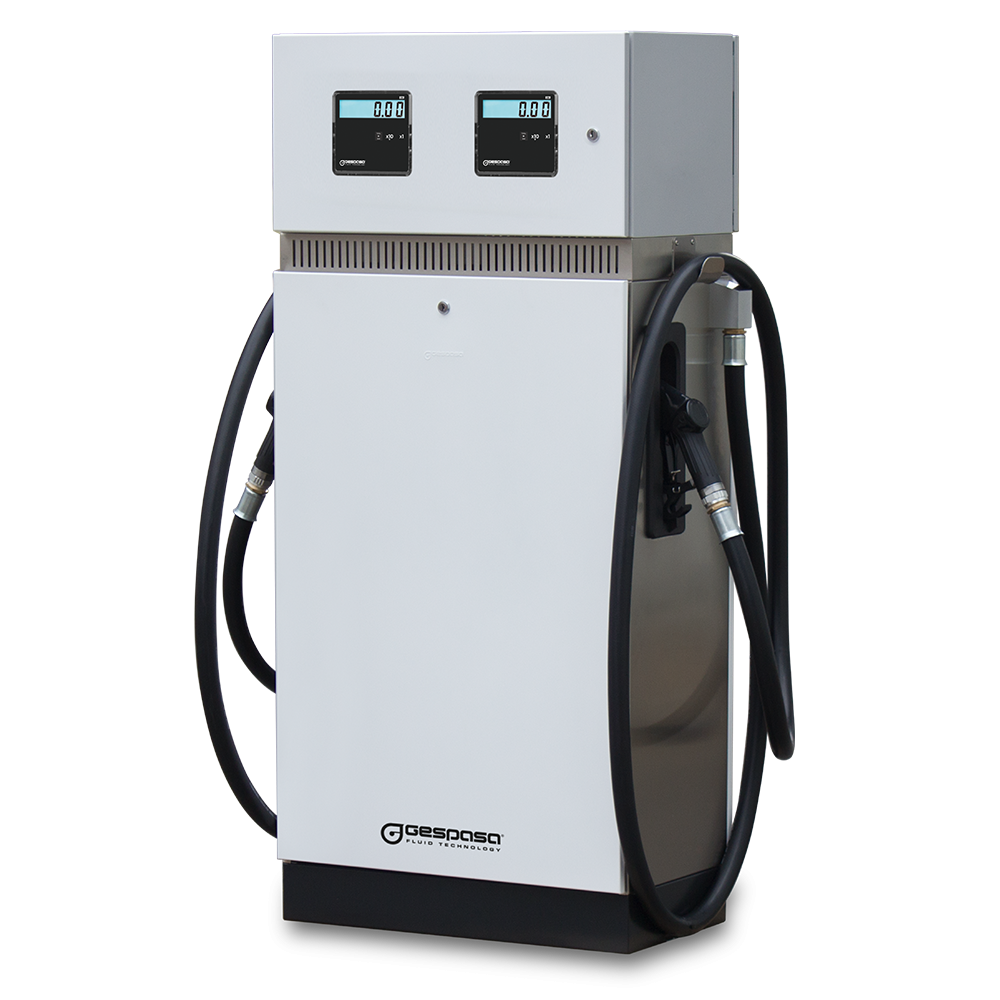

Supply kits suitable for fuel and AdBlue/DEF supply installations, in a simultaneous way. They have two 6-digit luminous displays (model GE) to connect to a GK-7 controller through protocol.

They are composed of:

CHASSIS

• Main body made of stainless steel, doors and heading made of steel with polyurethane paint
• Special interior and exterior treatment against corrosion
• Weatherproof

HYDRAULIC GROUP for fuel composed of:

• Pump: Self-suction, eccentric with self-adjusting blades with gas separator. Flow: 70-80 or 110 l/min · Recirculation bypass valve · filter
• Meter: made of aluminium of 4 pistons with positive displacement · Accuracy: ±0.2 % · Pulser of 2 channels of 100 pulses per litre · Mechanical totalisator
• EExd Motor with ATEX certificate · IP-55 protection:
  • Triphase 80 l/min · 1 kW 230/400 VAC
  • Triphase 110 l/min: 1.5 kW 230/400 VAC

AdBlue/DEF dispenser with MGI-40BLUE oval gear meter · accuracy ±0.8 %

It is supplied with:

• 4 m fuel hose
• 4 m AdBlue/DEF hose
• Automatic nozzle with swivel for fuel + 1 automatic nozzle with swivel included mod. PA-60U HV for AdBlue/DEF.

*Optionally it is possible to assemble the LV version for light vehicles.
