USE

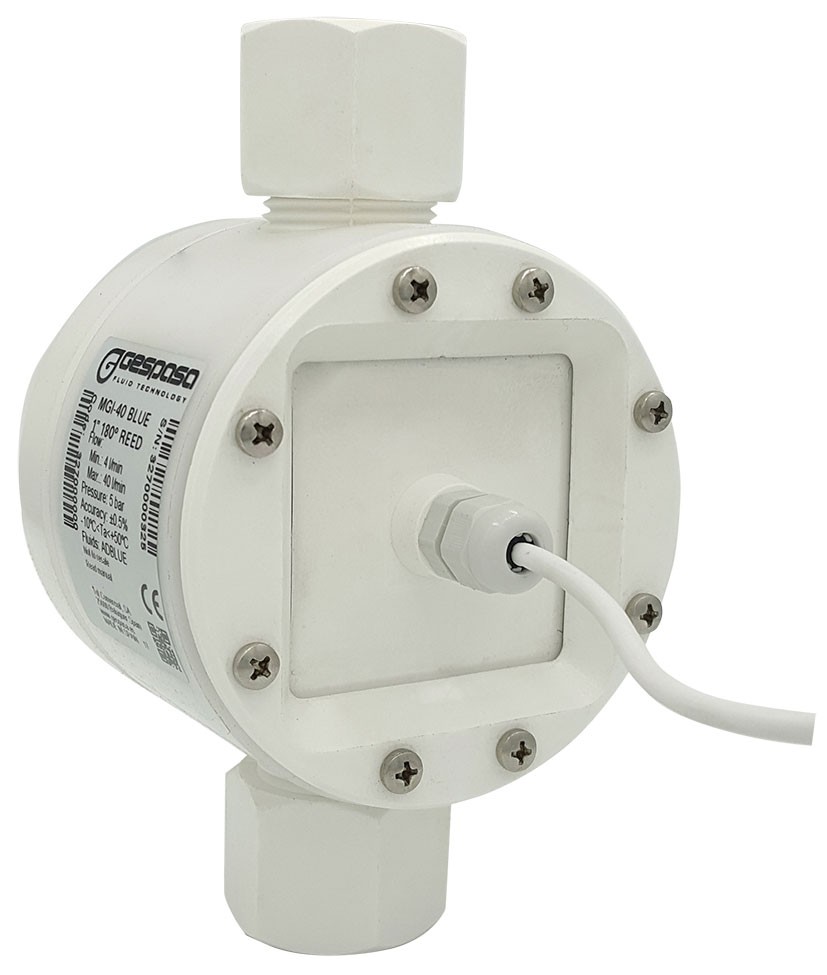

- Pulse meter for its in-line assembly, making easier the exact information of the fluid management and control systems.
Technical data:
- Flow: 4-40 l/min
- Maximum current: 100 mA
- Maximum voltage: 28 VDC/VAC
- Accuracy: ±0.8 %
- Maximum pressure: 5 bar · Break pressure: 10 bar
- Min./Max. temperature: -10 / +50 ºC
- Max. Humidity: 95 HR
- Two communication channels through REEDS
- Pulses: 94 ±2 % pulses per litre and channel
- Inlet/outlet connection thread: F1" GAS (BSP) with PA adapters
- Measuring chamber: POM
- 1.9 m cable
