APPLICATION

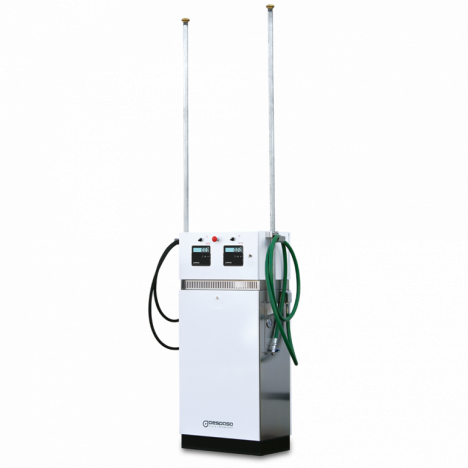

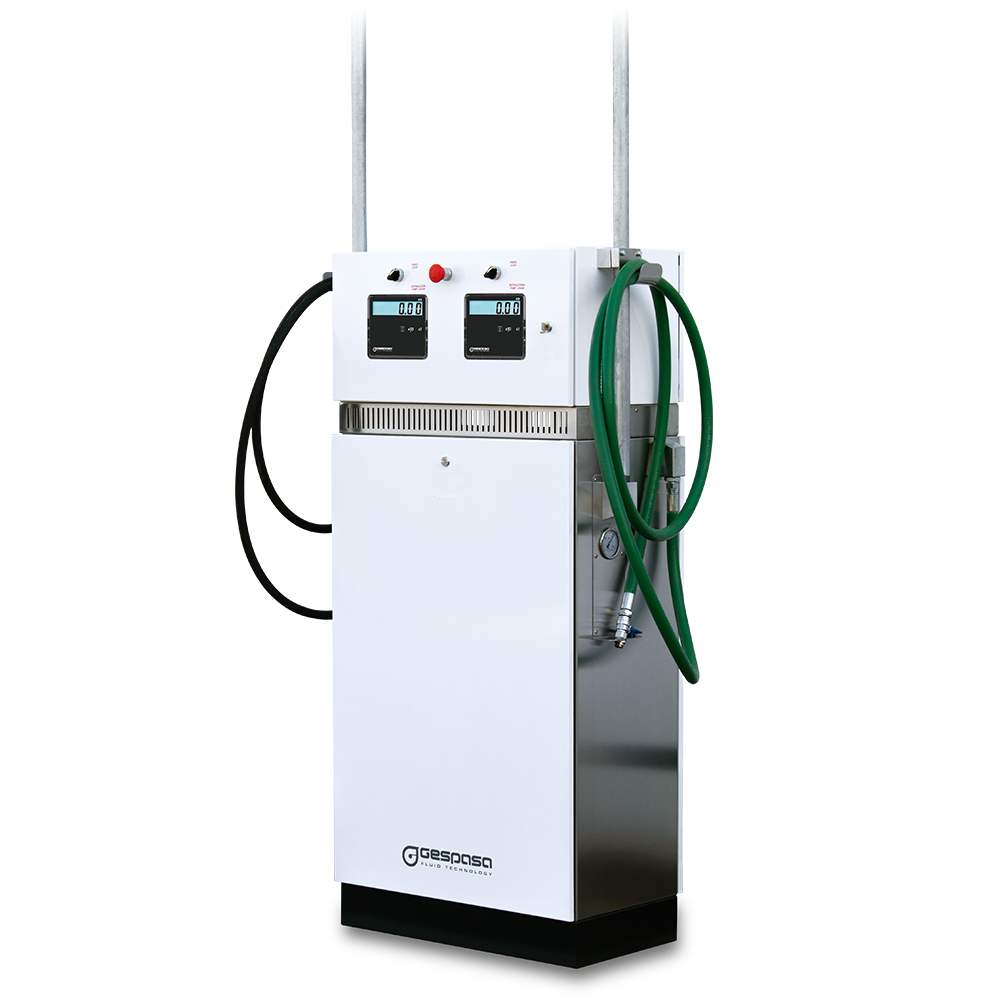

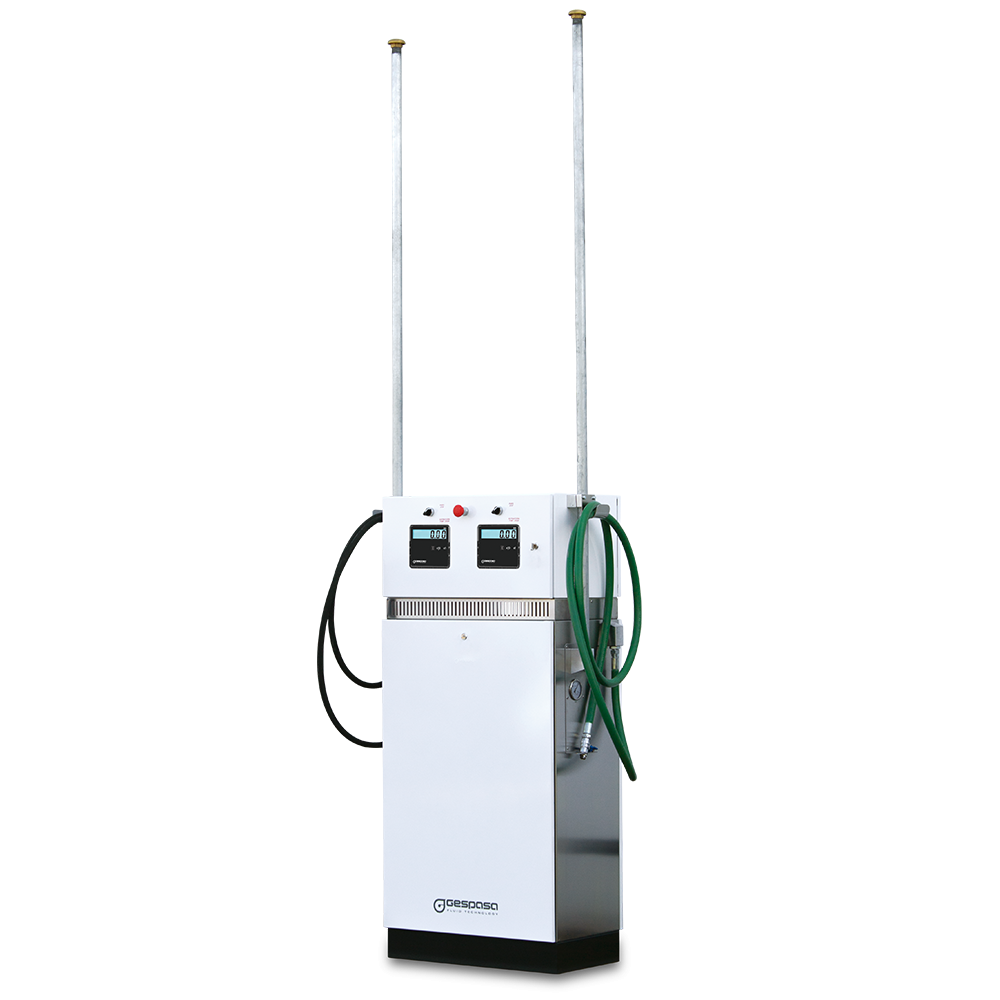

• Simple or double fuel extraction kits with ATEX components, special for the extraction of diesel, petrol and kerosene.
• The DH Plus version is composed of a fleet and supply controller, which sends the extraction information to the cloud www.dieselplus.net, informing about: worker, vehicle, dispenser, fuel type, suctioned litres, etc.

TECHNICAL FEATURES

• Suction flow: 15 or 60 l/min
• Accuracy: ±2 %
• Embedded ventilation in the extractor

Composed of:

CHASSIS:

• Main body made of stainless steel
• Doors and heading made of steel with polyurethane paint
• Special interior and exterior treatment against corrosion
• Weatherproof

1 or 2 HYDRAULIC GROUPS composed of:

• Pump: Self-suction, eccentric with self-adjusting blades with gas separator · Recirculation bypass valve · filter
• Meter: made of aluminium of 4 pistons with positive displacement · Accuracy: ±0.2 % · Pulser of 2 channels of 100 pulses per litre · Mechanical “backup” totalisator
• Motor: 1 kW 230/400 VAC or 230 VAC (triphase or single-phase) · motor EExd with ATEX certificate · IP-55 protection

ELECTRONIC DISPLAY:

• GE · 6-digit electronic tropicalised console with luminous display at 230 V · Signal amplifier output for connection to an external controller
• or GK-7Plus controller: Communicate automatically and wirelessly, through 2G, to the cloud software www.dieselplus.net
