APPLICATION

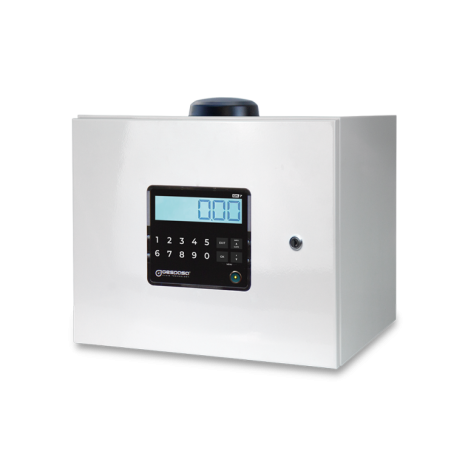

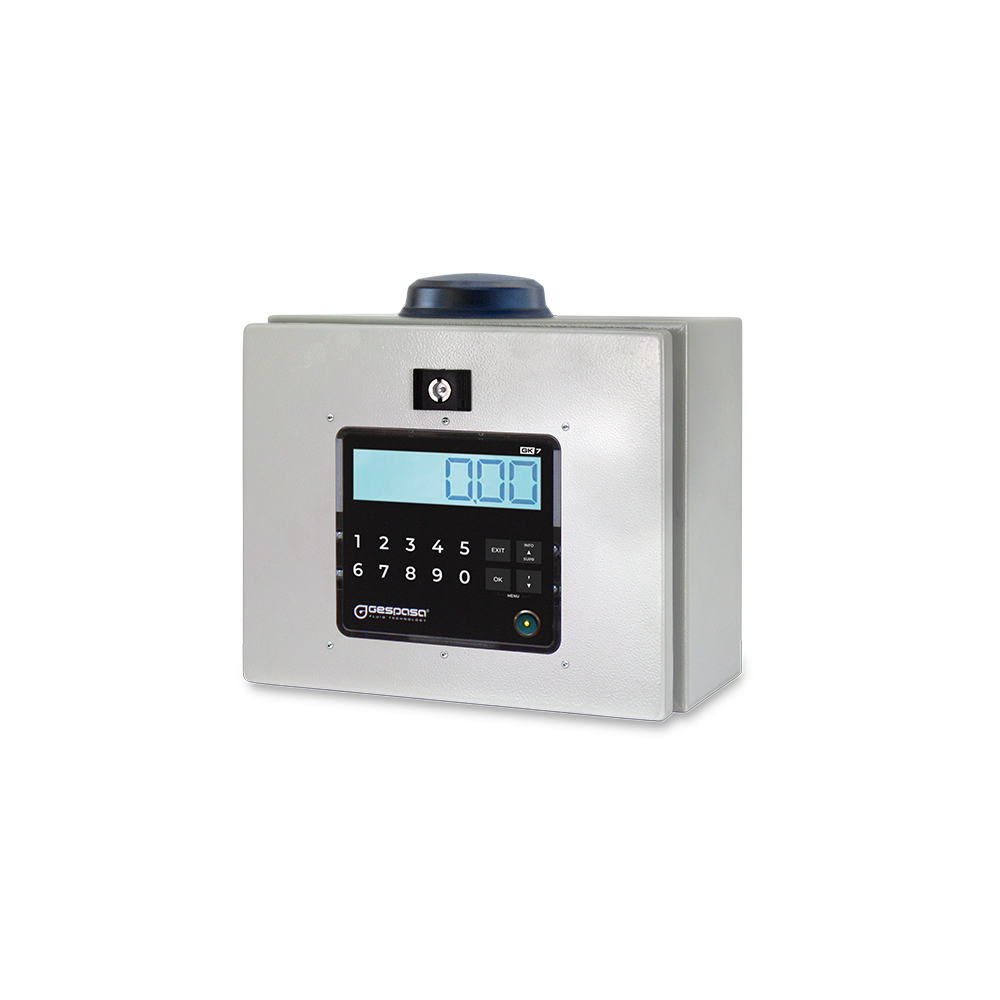

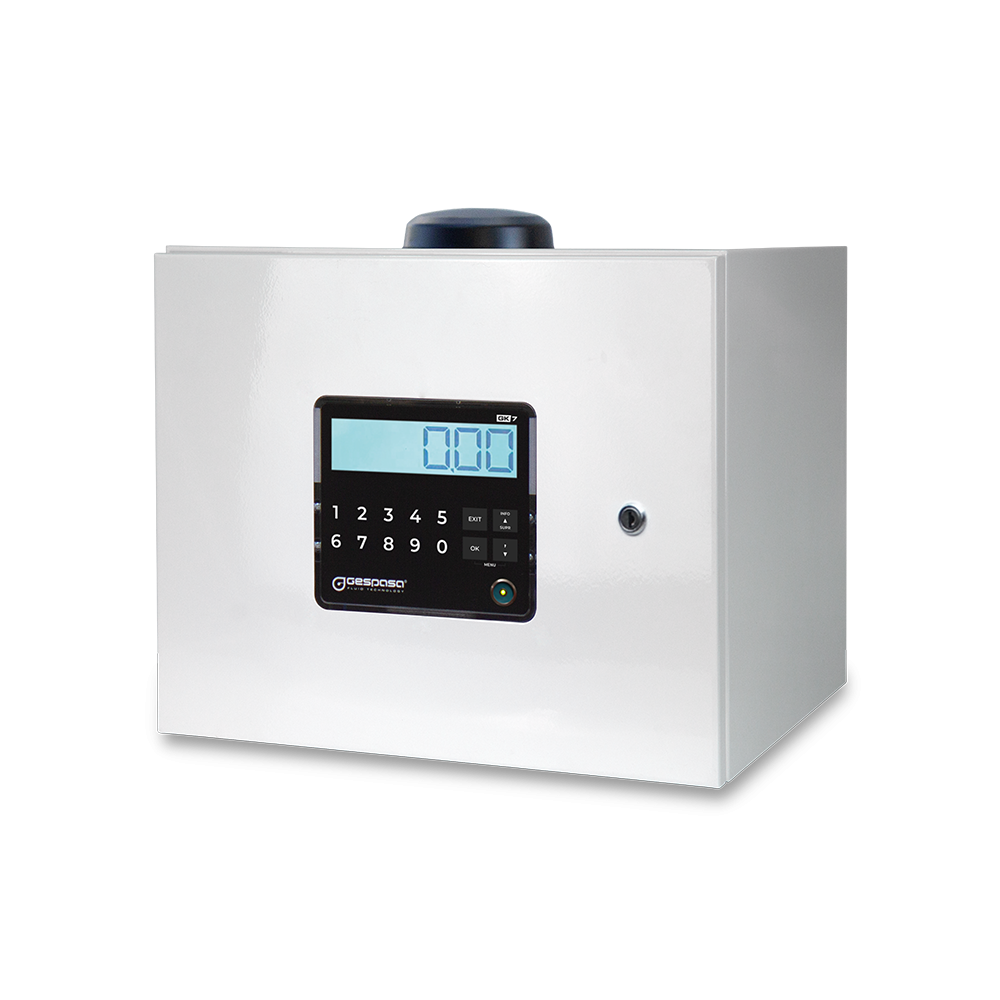

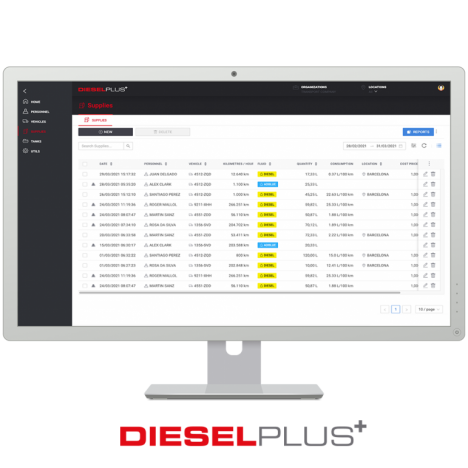

• Controller with an embedded GPRS modem that automatically communicates with the web site www.dieselplus.net
• Required a DieselPlus licence to get the user and password
• Automatic reception of the lists in your email

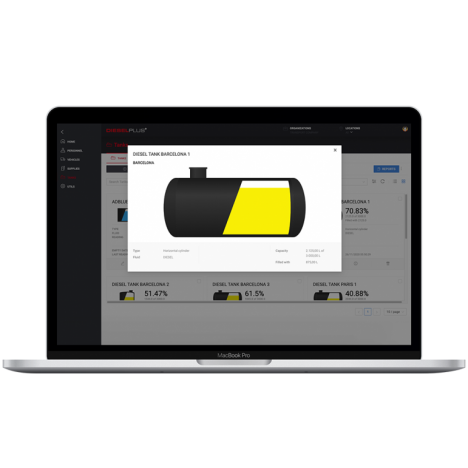

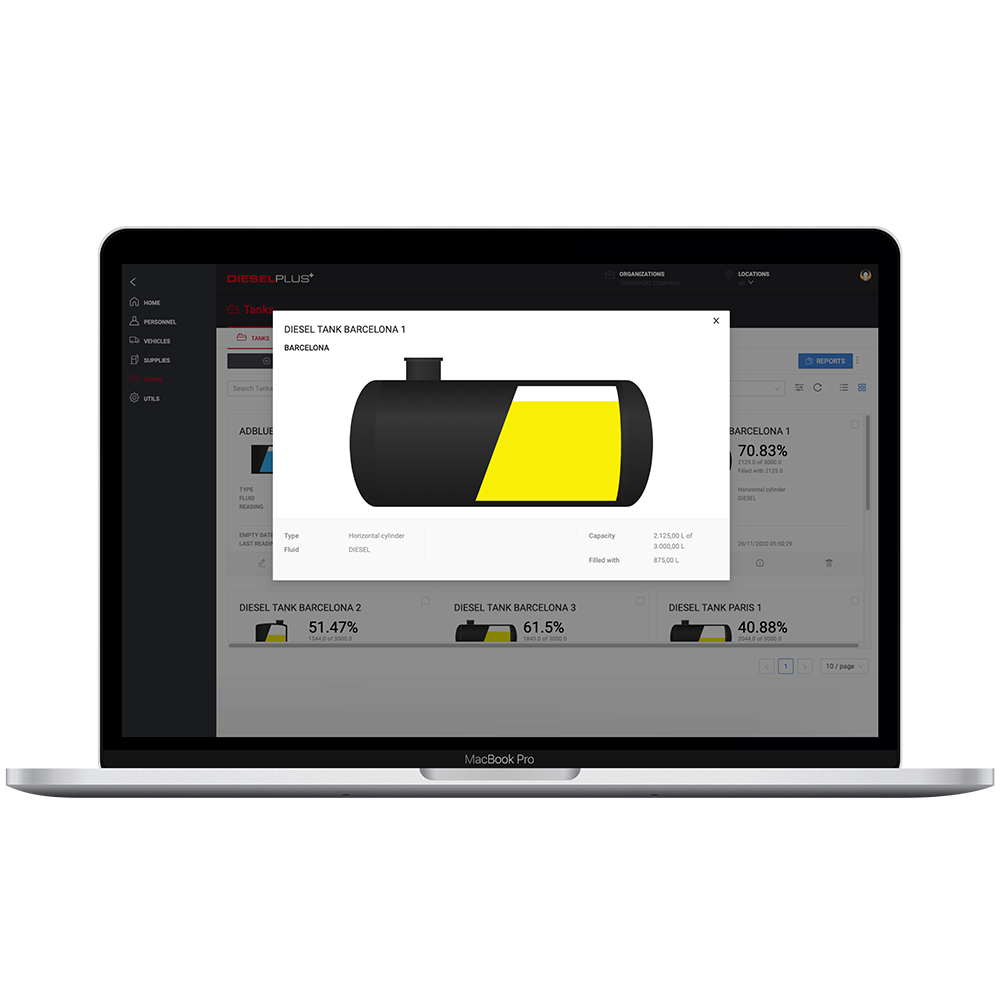

• Data consultation of your supplies, dispenser configuration from any device connect to the Internet or from the APP installed in your smartphone.
• The own consumption controller is intended for the supply control, allowing its use only to authorised personnel.
• Supply with or without litre preset
• User and/or vehicle identification through numerical code or
• iButton keys. Other identification systems available.
• Internal key for the manual starting in case of an electronics breakdown. From the software it will be detected if the kit has been started in the manual mode “fraudulently”.
• Bidirectional communication with the software which allows to configure, create users and vehicles
• Different systems for the data base integration with your own software, ERP or accounting system

TECHNICAL DATA

• Voltage: 110 or 230 VAC 50 Hz or 12/24 VDC · Built-in filter
• Frontal: alphanumeric LCD Display of 4 lines and 20 characters
• Identification key reader
• Service temperature: 0 to 40 ºC
• Relative air humidity: among 20 and 80 %

USE

The kit allows to define different stages to be adjusted to the customer’s requirements:

• User identification: It is specially useful for identifying only who is supplying.
• Vehicle identification: It is specially useful for identifying and controlling the vehicles and their consumption, without identifying the users.
• User and vehicle identification: it is the most complete system offering a high level of security. It is specially useful for installations with a high number of users and/or vehicles, or where the users often change the vehicle.

The supply kit with GK-7Plus controls:

• the supply hour and date
• the users
• the vehicles
• the supplied litres by users and/or vehicles
• the kilometres (milles) (or hours) and the consumption
• litre stock of the tank

The query and configuration operations can be made from the PC, and it is possible

• to input and delete the users and/or vehicles
• to assign or change the codes or keys of the users and/or vehicles
• to calibrate the kit

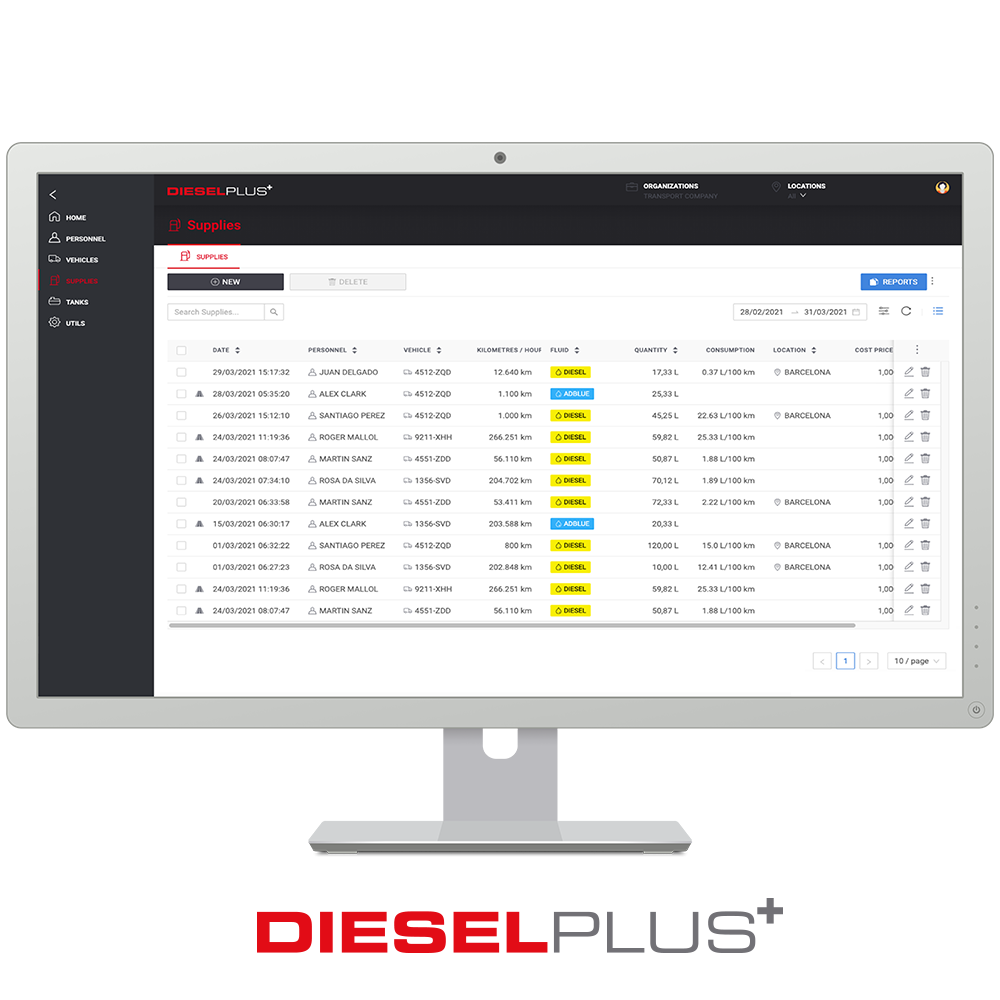

• to check the done supplies

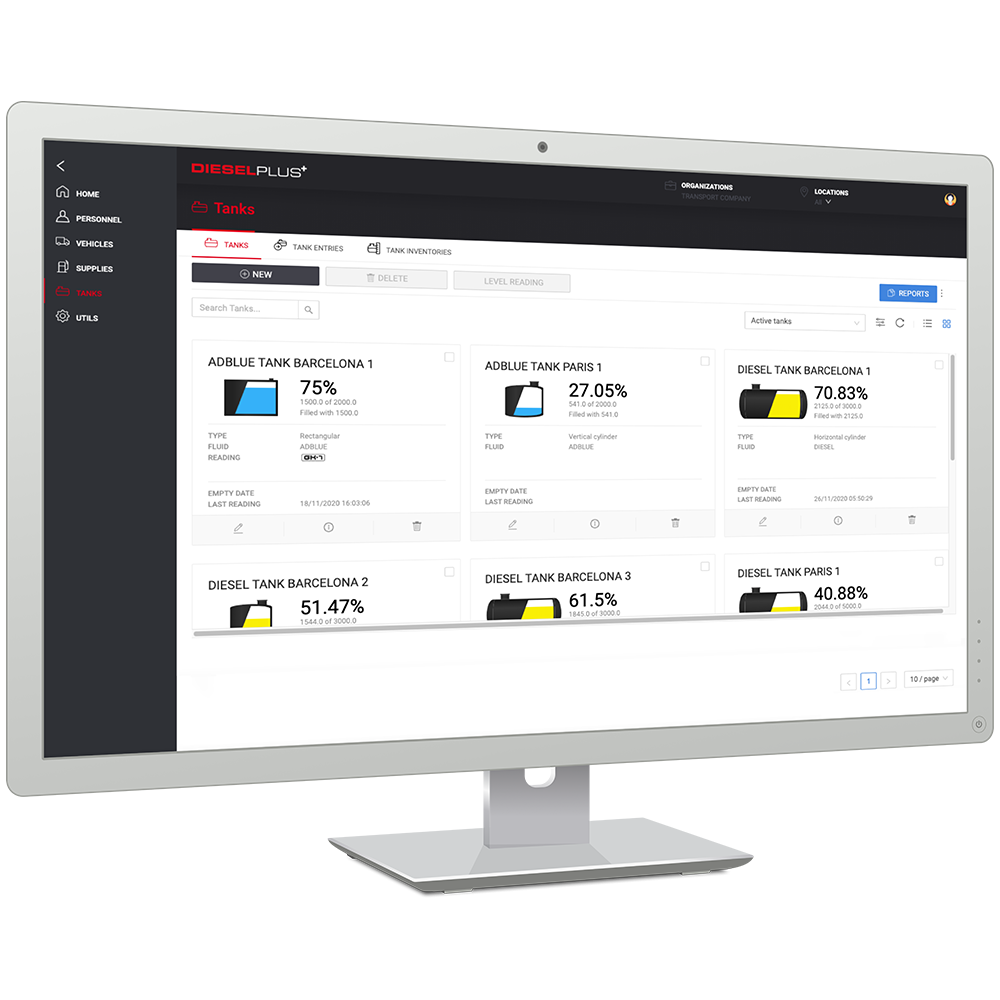

• to check and regularise the tank stock
• to export the information to an Excel or .txt (text) format in order to export it to other data base systems or programs;
• to access the information control with permissions for different user profiles.
