APPLICATION

• Self-suction, self-priming pump with eccentric vanes

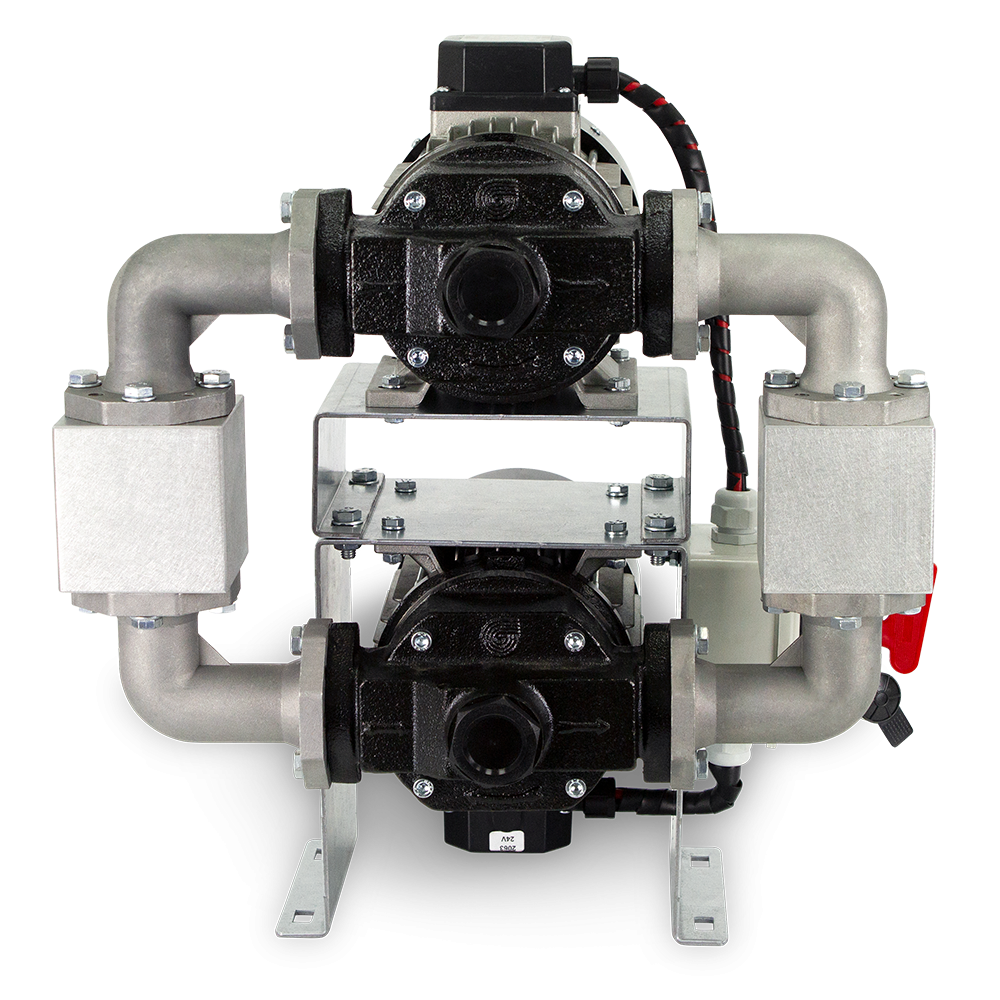

• Composed of two pumps joined by a manifold (on demand)
• Suitable for the transfer of diesel fuel, at high flow rates, in areas where a connection at 230 VAC or 110 VAC is not possible.

TECHNICAL FEATURES

• Flow: 200 l/min
• Consumption: 30-47 A 24 VDC
• Pressure: 1.4 bar
• Motor: 2x0.37 kW 24 VDC, dust protected, self-ventilated
• Tropicalised
• Continuous operation
• IP-55 protection
• 1,500 rpm
• Equipped with recirculation bypass
• Suction: 2.7 m · Delivery: 20 m
• Priming pipe suction: 5 m
• Connection using M1 ½" threads (BSP). The manifold can be built according to specific needs on demand.
• Junction box with key switch
• Anti-rust treatment

Dimensions and weight (approx.):

• Dim.: 440x410x460 mm (LxWxH)
• Weight: 35 kg

Optional

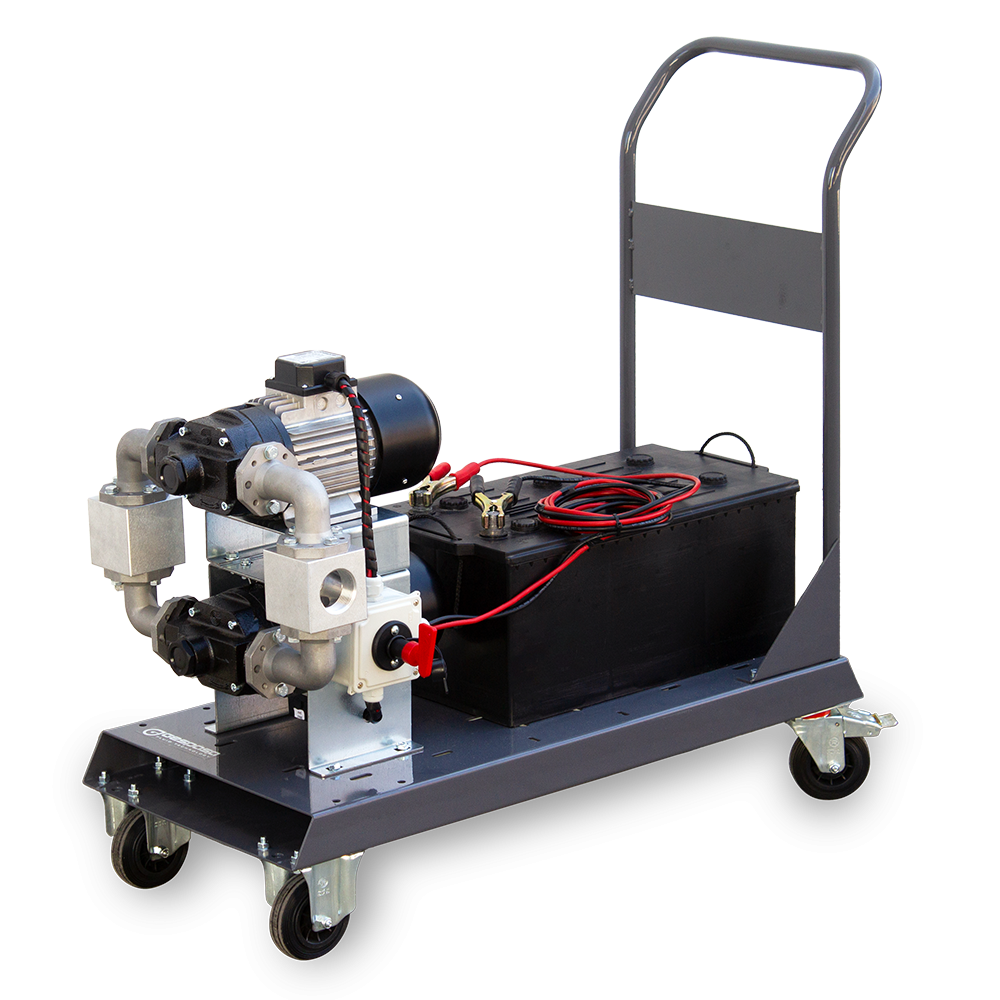

• Metallic bedplate trolley with wheels
• Hoses and accessories
• Hose-reel
