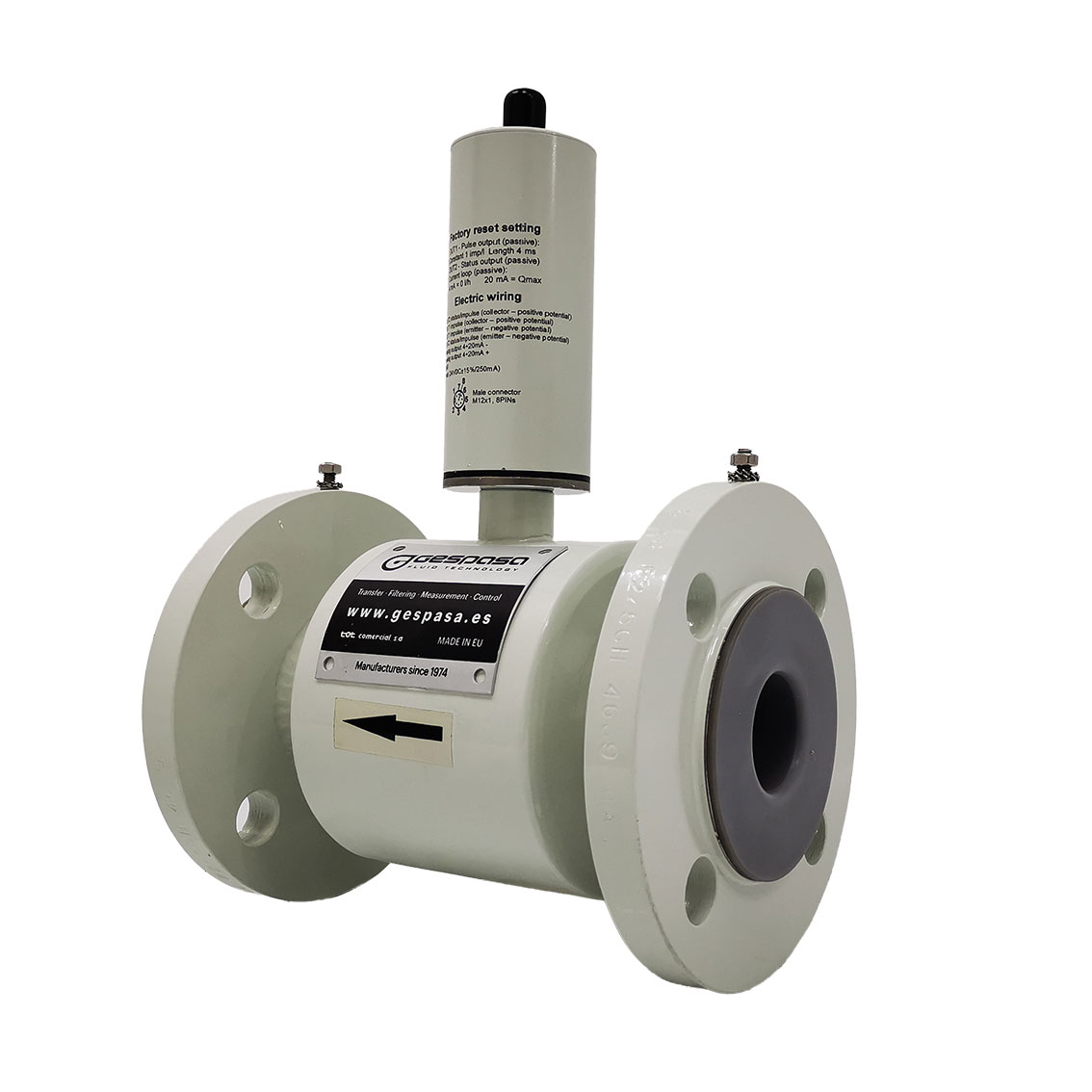

- Induction meter designed for the measurement of AdBlue/DEF or other phytosanitary fluids
- Internal lining in PFA that makes it a multifunctional meter compatible with different types of fluids
- For connection to external GESPASA display or compatible with the type of signal
| TECHNICAL FEATURES |
| Electromagnetic flowmeter |
| Signal output for connection to GESPASA display or other compatible ones |
| Compact design |
| DIN flange process connection |
| PN16 |
| PFA Internal lining |
| Hastelloy C4 Electrodes |
| Protection: IP-65 |
| Output and signal: 4-20 mA |
| Supply: 24 VDC ±15% |
| Opposite connector: M-12, 8 pin |
| Accuracy: ±0,5% |
| Repeatability: ±0.2% |
| Max. liquid temperature: 40 °C |
| Max. ambient temperature: 55 °C |
| MEASUREMENT RANGE | |
|---|---|
| MGI-EM/DN32 | 5-1,400 l/min (1.4-84 m3/h) |
| MGI-EM/DN40 | 15-900 l/min (0.9-54 m3/h) |
| MGI-EM/DN50 | 10-566 l/min (0.6-34 m3/h) |
