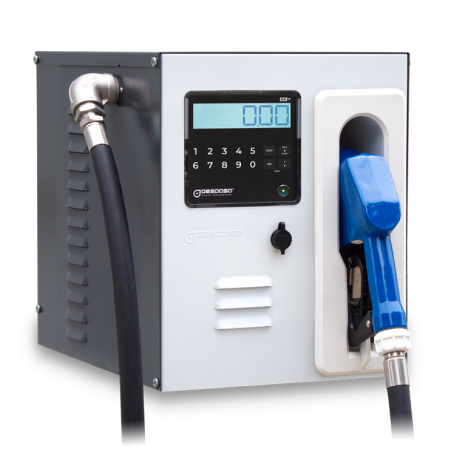

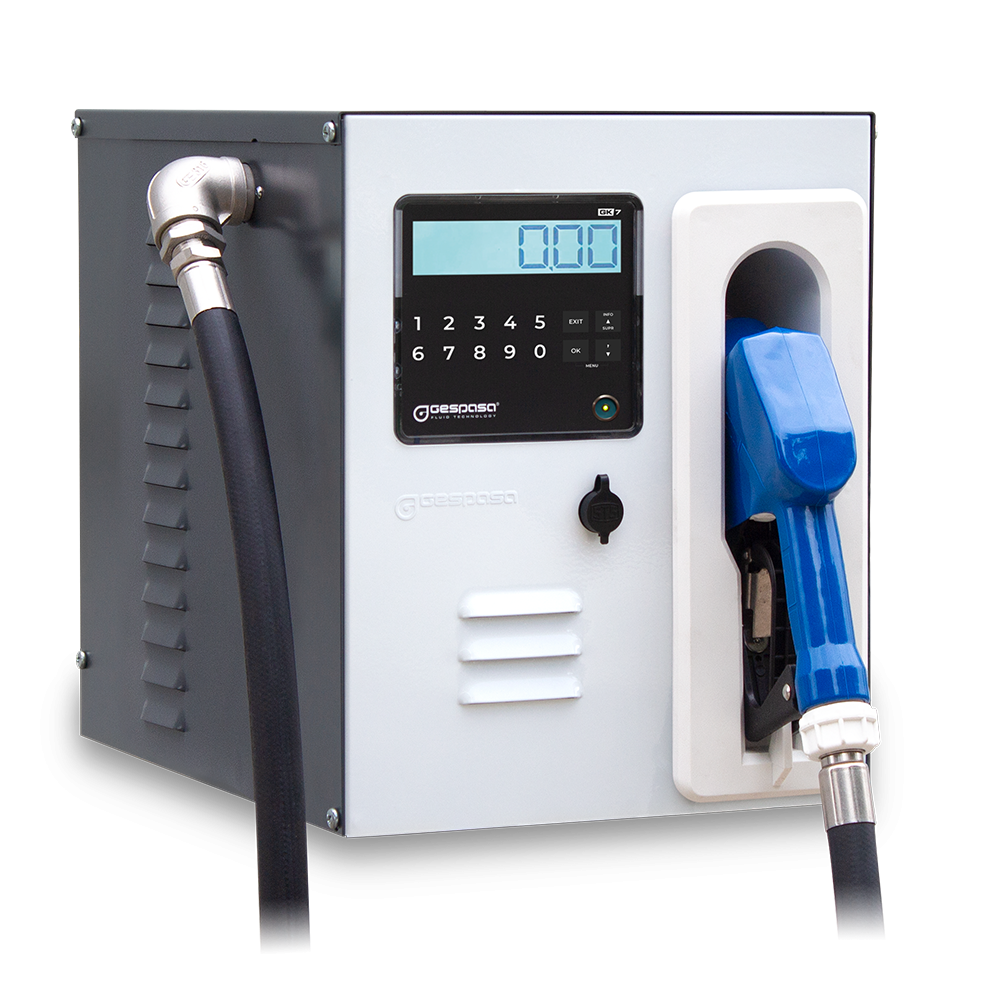

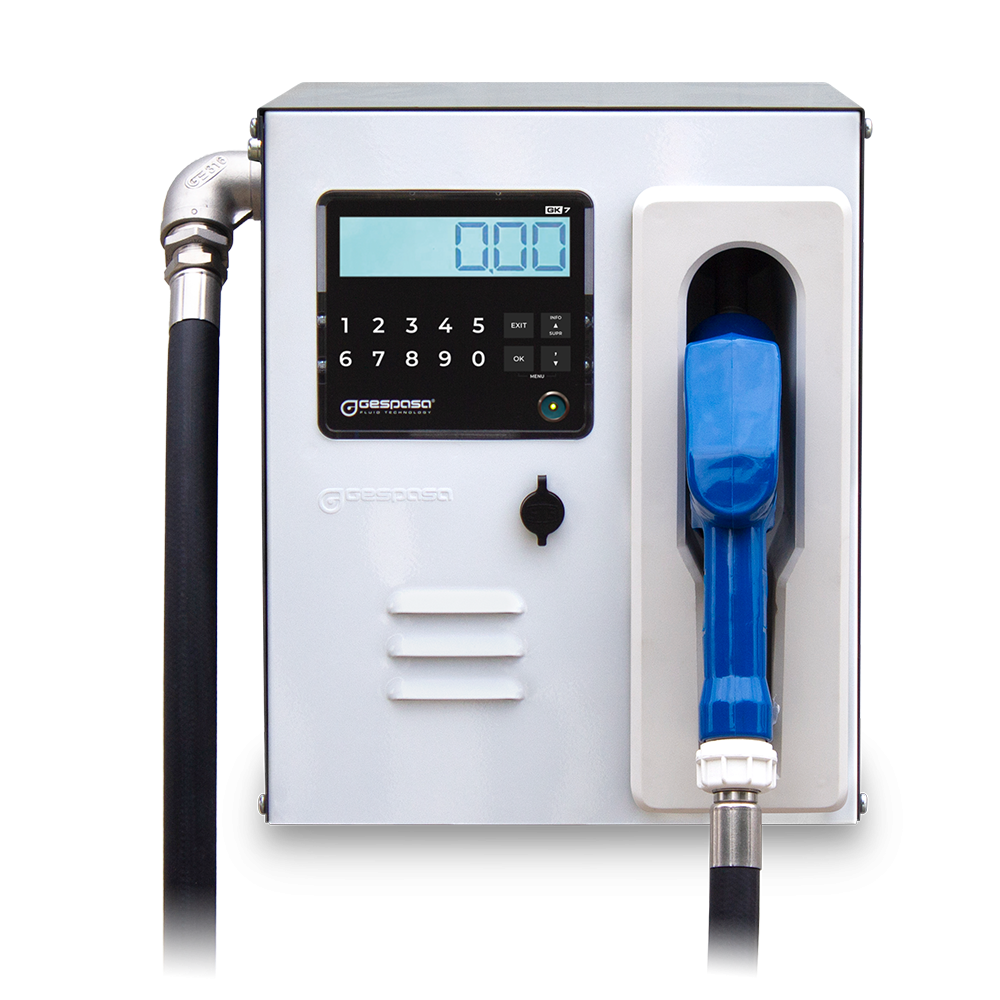

- The COMPACT PLUS electronic supply kits with GK-7Plus own consumption controller are suitable for the AdBlue/DEF supply, measurement and control.
- The GK-7Plus controller allows the supply only to authorized personnel and memorizes all the services that the users and/or the vehicles do. The supply kit has the Internet connection. The user can manage the dispenser data like users, vehicles and done supplies from any PC, which is connected to the Internet, entering into the control web site www.dieselplus.net/ with a user name and a password.
- These kits are manufactured with materials compatible with this type of fluid to avoid damages both in the liquid and the parts that are in touch with it.
It is composed of:
CHASSIS:
- Made of steel and stainless steel
- Special interior and exterior treatment against corrosion
- Finished with brilliant epoxid paint
- Weatherproof
PUMP:
- BD-30 230 VAC Diaphragm pump
PULSER:
- MGI-40BLUE · Accuracy ±0.8 %
SOFTWARE
NOZZLE
- PA-60U automatic
HOSE
- 4 m Ø19 mm delivery hose special for AdBlue/DEF
- Nozzle hanger with automatic switch to stop and start the pump
