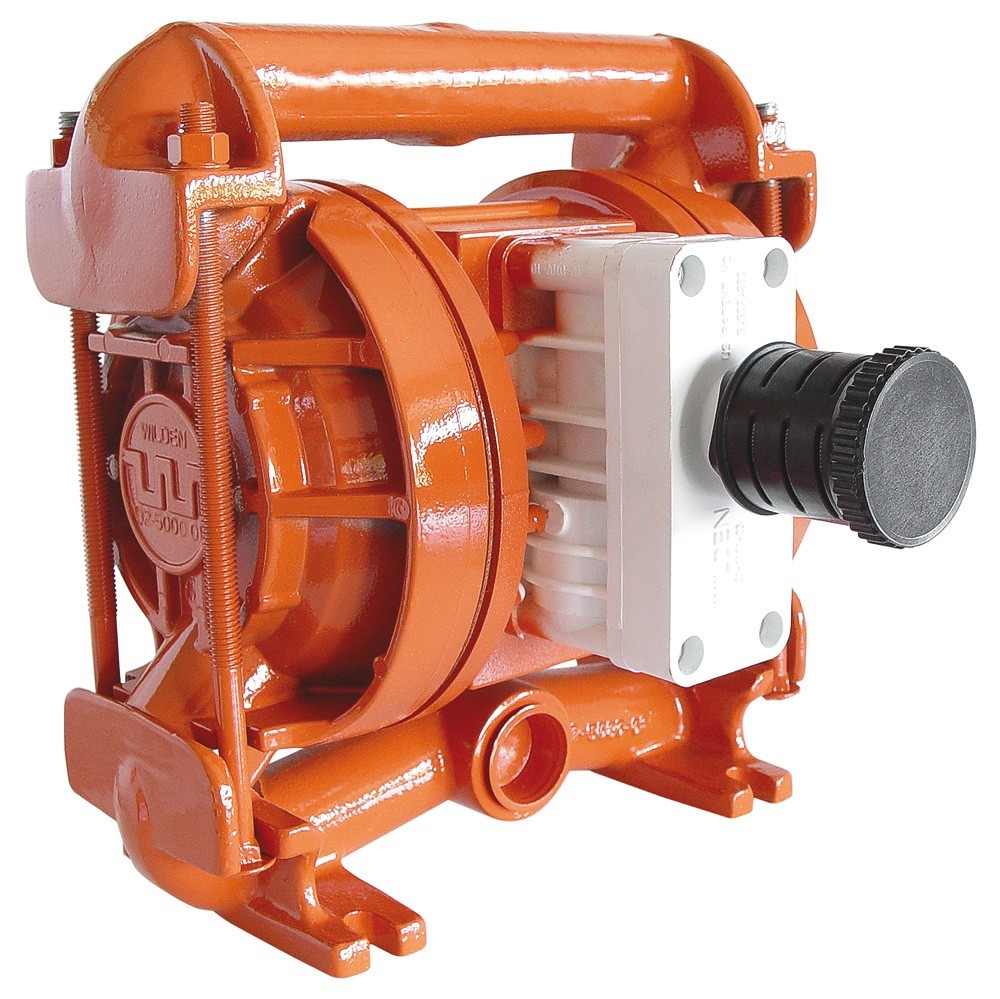

Diaphragm pump for the new and waste lubricants. It can transfer lubricant with little
impurities (max. diameter: 2mm). Please, consult other liquids.
- Flow: 170 l/min
- Air flow: 1,133 l/min
- Max. pressure: 8.6 bar (125 PSI)
- Body: injected aluminium
- Suction connection: 1" BSP
- Delivery connection: 3/4" BSP
- Membranes: BUNA
- Seats: Aluminium
- Seat joints: BUNA
- System: without lubrication without middle position
