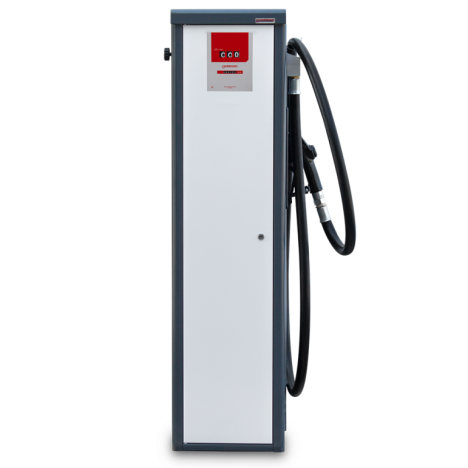

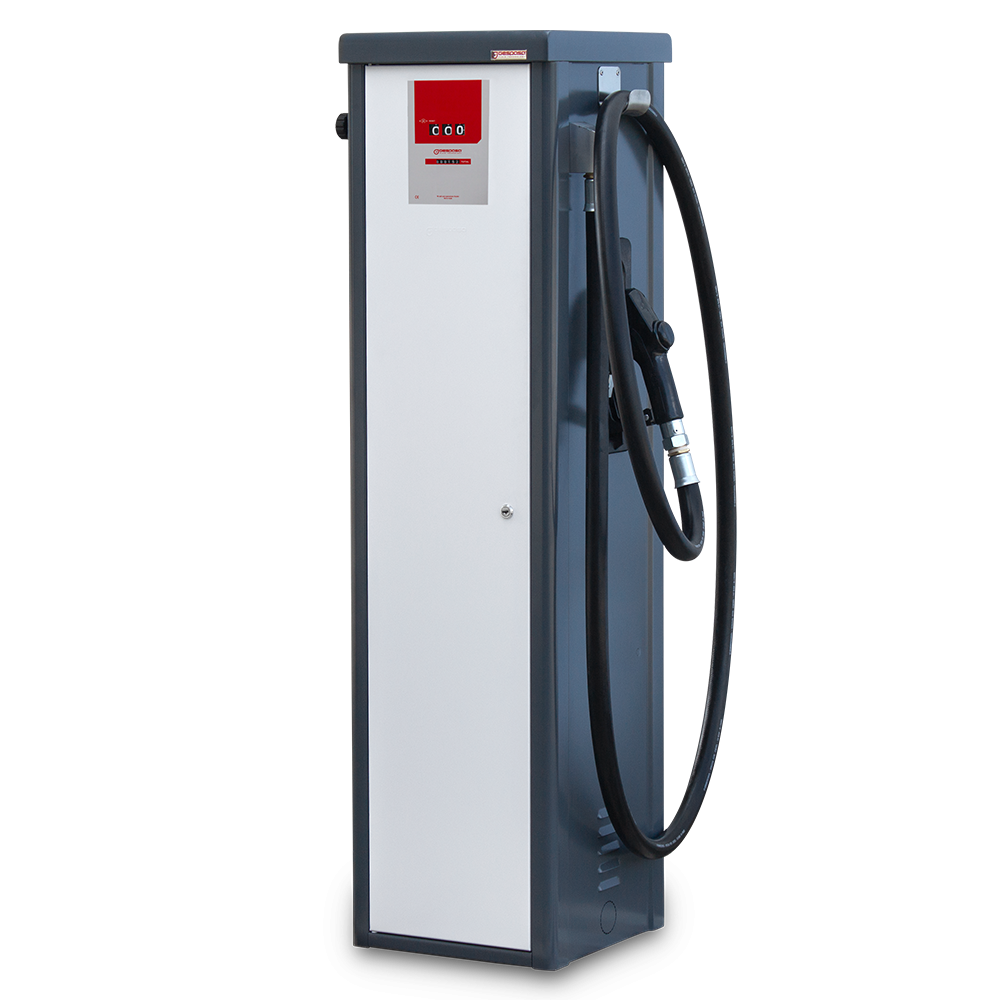

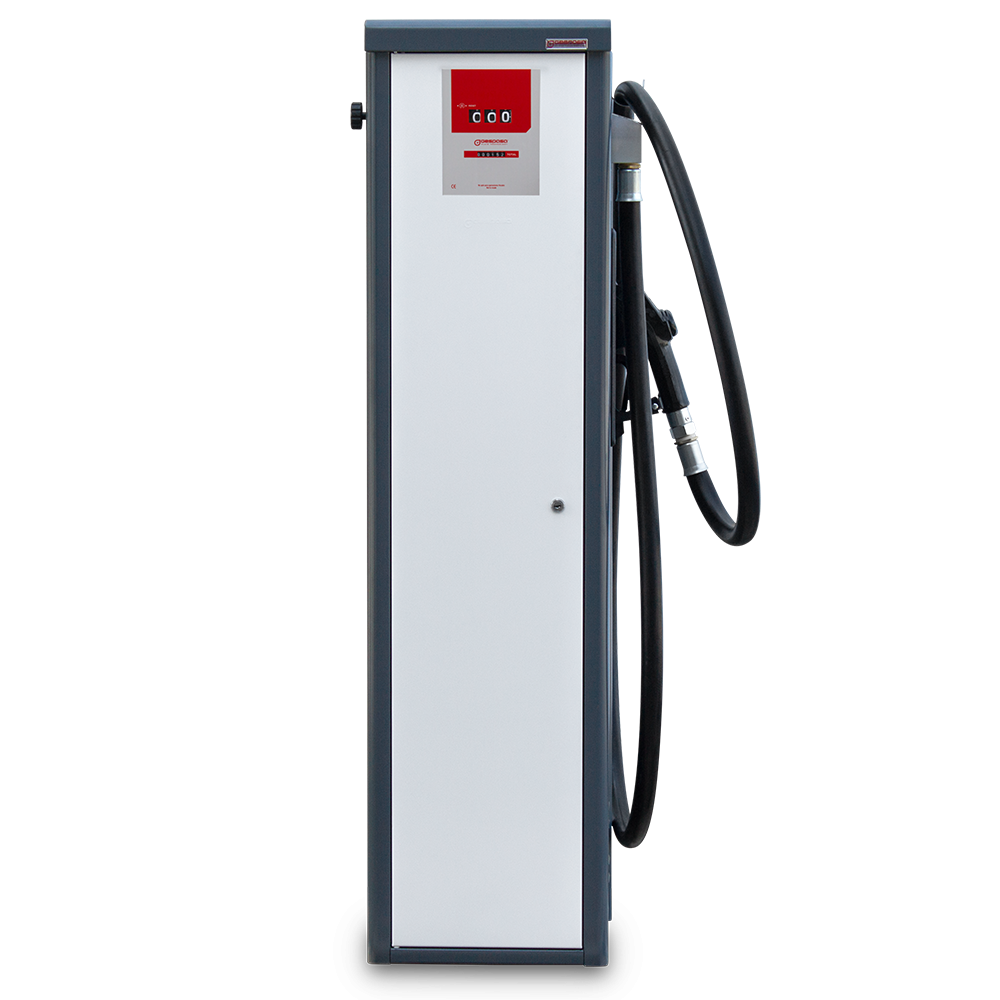

TOTEM M · MECHANICAL SUPPLY KITS

The TOTEM mechanical supply kit is suitable for the diesel and petrol supply and measurement for the own consumption vehicles.

It is composed of:

CHASSIS

Column for its direct fixation to the ground without bases or additional accessories
Made of steel
Special interior and exterior treatment against corrosion
expoxid paint
Weatherproof

PUMP

METER:

NOZZLE:

HOSE:

DIESEL

TOTEM 75M-230 V · Mechanical supply kit

27150-CF00000

TOTEM 75M-230 V · Mechanical supply kit

27260-CF00000

TOTEM 100M-230 V · Mechanical supply kit

27270-CF00000

Diesel	Voltage	Mechanical aluminium meter	Automatic nozzle	Flow (l/min)	Size and weight (approx.)
TOTEM 50M-230	230 VAC	MG-80A	PA-60	40-50	385x435x1,500 mm	48 kg
TOTEM 75M-230	230 VAC		PA-80	65-70	385x435x1,500 mm	48 kg
TOTEM 100M-230	230 VAC		PA-120	75-90		54 kg

PETROL

TOTEM 50M-230 V Ex · Mechanical supply kit

27170-CF00000

TOTEM 800M-230 · Mechanical supply kit

27180-CF00000

Petrol	Voltage	Mechanical aluminium meter (Viton)	Automatic nozzle	Flow (l/min)	Size and weight (approx.)
TOTEM 50M-230 Ex	230 VAC	MG-80AV	PA-80	40-50	385x435x1,500 mm	54 kg
TOTEM 800M-230	230 VAC	MG-80AV	PA-80	60-70	385x435x1,500 mm	59 kg

OPTIONAL:

- FG-100 microfilter kit (TOTEM 50/75/100 indoors)

27231
