Water

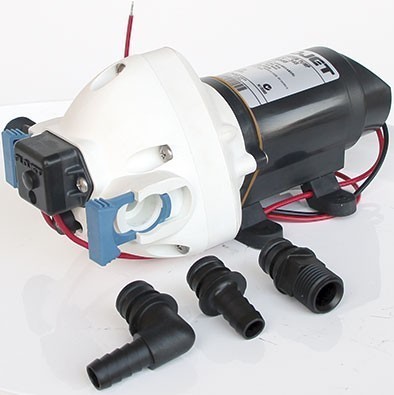

AF DIAPHRAGM PUMPS

12 or 24 VDC · 230 VAC

Continuous use for water transfer at pressure
Self-suction: 2 m
Operation in dirt
Automatic demand-pressure switch
Consumption: according to pump model
Connection through F3/8" (NPT) thread

NBR Diaphragm

AF-2012 12 VDC · 2 valves

07000

AF-2024 24 VDC · 2 valves

07050

AF-2220 230 VAC · 2 valves

07030

AF-4012 12 VDC · 4 valves

07020

Viton diaphragm

AF-2012V 12 VDC · 2 valves

07060

AF-2024V 24 VDC · 2 valves

07080

AF-2220V 230 VAC · 2 valves

07070

High pressure · Self-ventilated · NBR diaphragm

AF-2036 AP 12 VDC · 4 valves

07010

Mod.	Voltage			Thermal Protector	Intensity (A)	Flow (l/min)	Pressure (bar)
AF-2012	12 VDC			NO	3.5-6	8	2.1
AF-2024	24 VDC			NO	1.5	8	1.7
AF-2220	230 VAC			NO	0.25	6	4.1
AF-4012	12 VDC			YES	7	12.5	2.5
AF-2012V	12 VDC			NO	3.5-6	8.7	2.1
AF-2024V	24 VDC			YES	3.5	8.7	2.1
AF-2220V	230 VAC			NO	0.25	6	4.1
AF-2036AP	12 VDC			NO	7	6.8	6.6

Optional

- FF 3/8´´ transparent vessel filter

802705001
