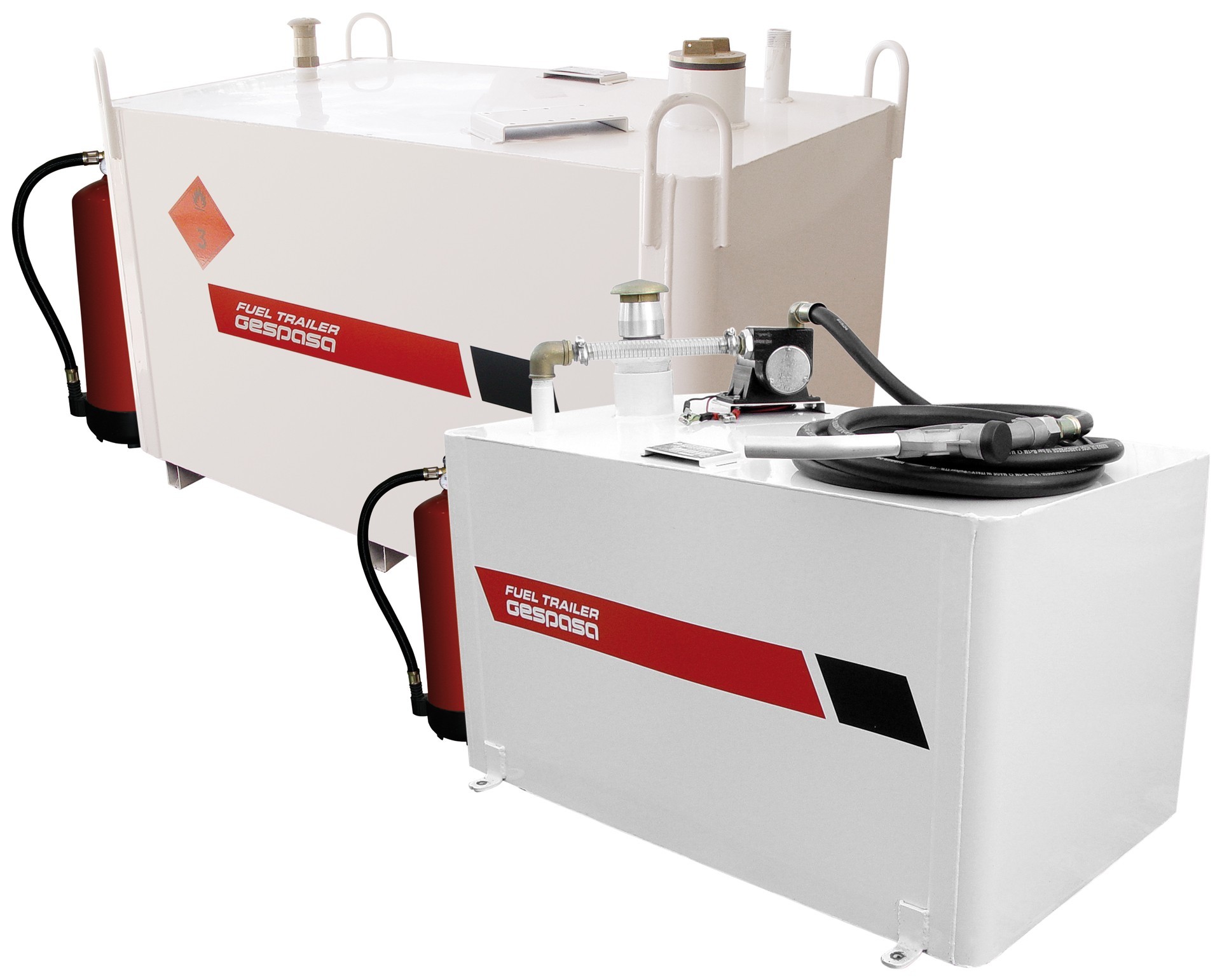

RECTANGULAR GRG

Autonomous fuel transport tanks, of capacities from 190 to 980 litres, specially suitable for the diesel transport for heavy and agricultural machinery, excavations, ... These tanks are also suitable to be installed in vans, "pick-up", trucks, etc.
These are approved according to ADR regulations, for the road traffic without dangerous goods card.
They are made of ST 44-2 carbon steel and finished with Epoxi paint, with inner "bulwark" and security valve.
These tanks include: venting valve, FUP-1 filter and fire extinguisher.

GRG 190

35220

Capacity: 190 litres
Dim. (approx.): 900x395x750 mm (length x width x height)
Weight (approx.): 55 kg

GRG 320

35130

Capacity: 320 litres
Dim. (approx.): 1,000x600x750 mm (length x width x height)
Weight (approx.): 69 kg

GRG 500

35110

Capacity: 500 litres
Dim. (approx.): 1,000x600x1,000 mm (length x width x height)
Weight (approx.): 106 kg

GRG 980

35120

Capacity: 980 litres
Dim. (approx.): 1,250x1,000x950 mm (length x width x height)
Weight (approx.): 153.5 kg

* The supply kit could be customized according to the customers´ requirements.
