MG-84A · MECHANICAL

15-90 l/min · ±1 %

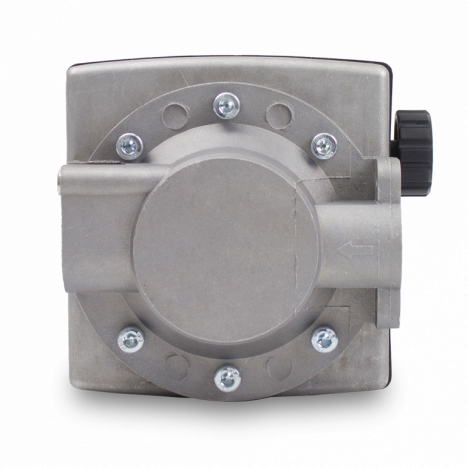

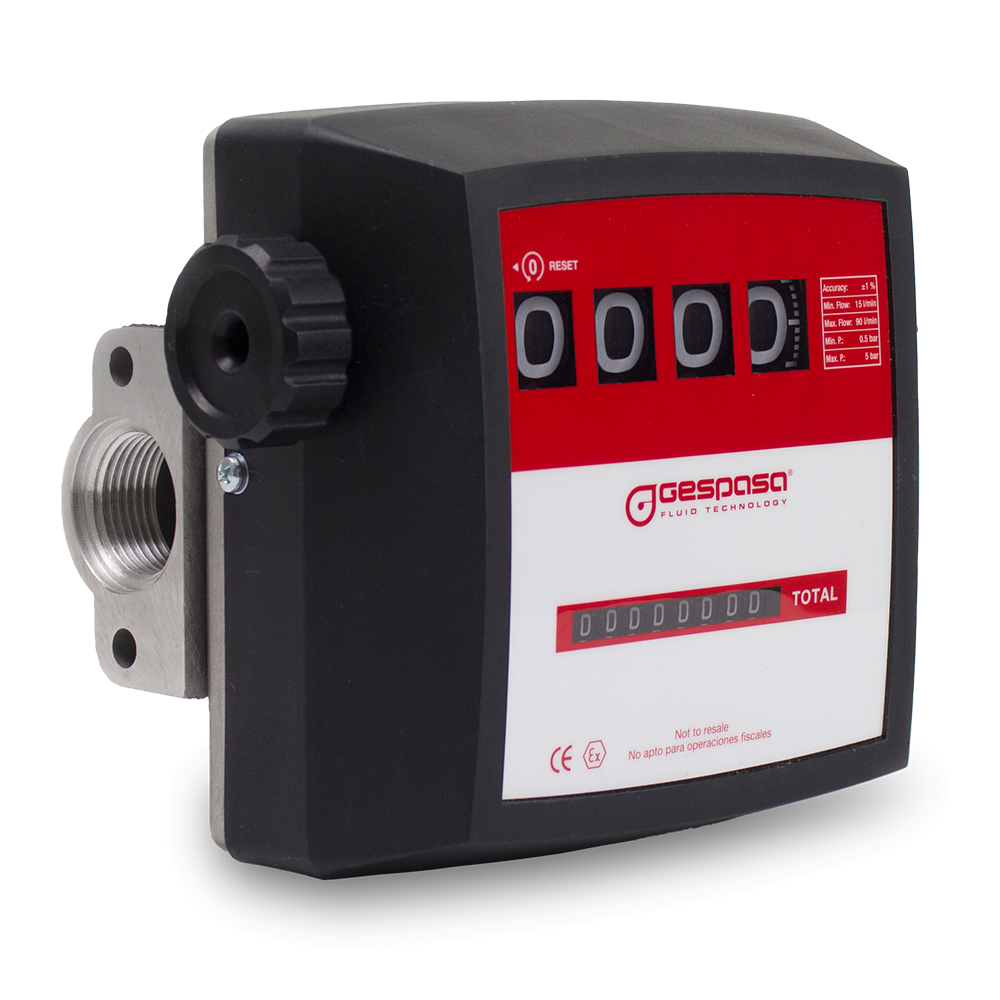

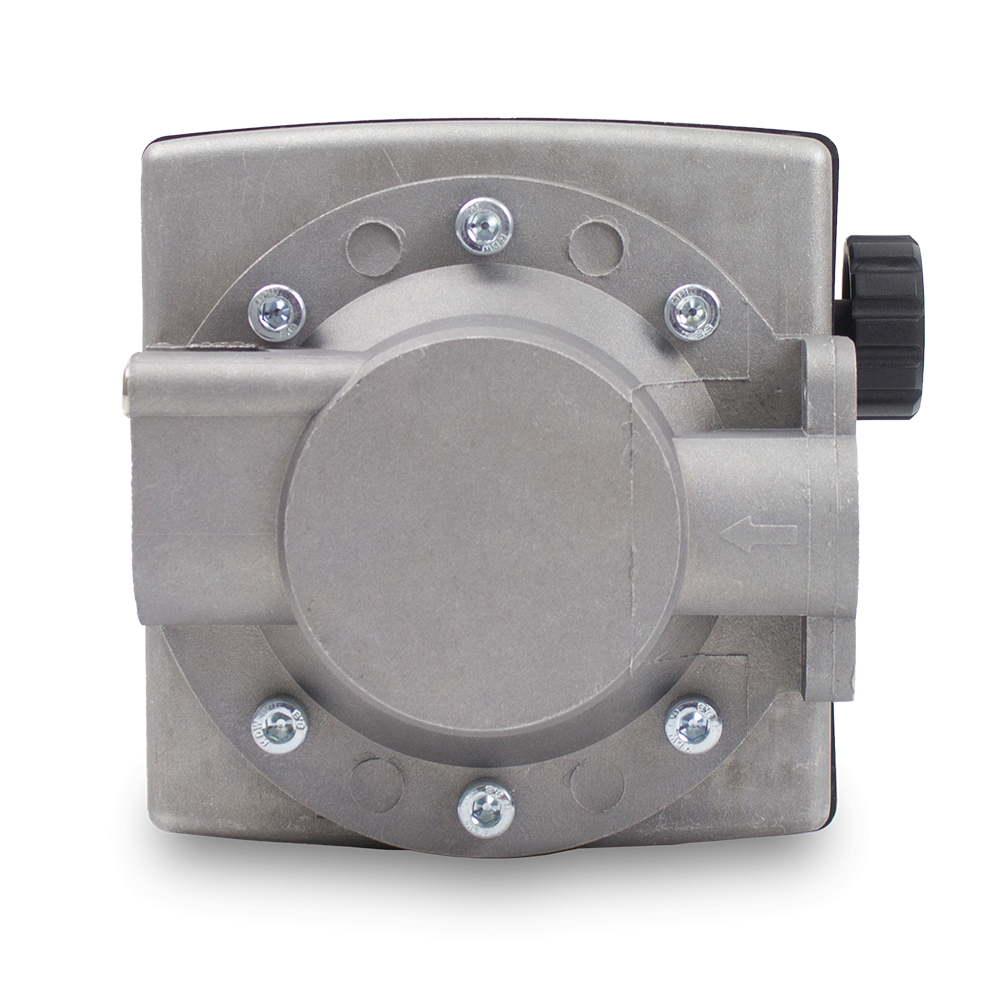

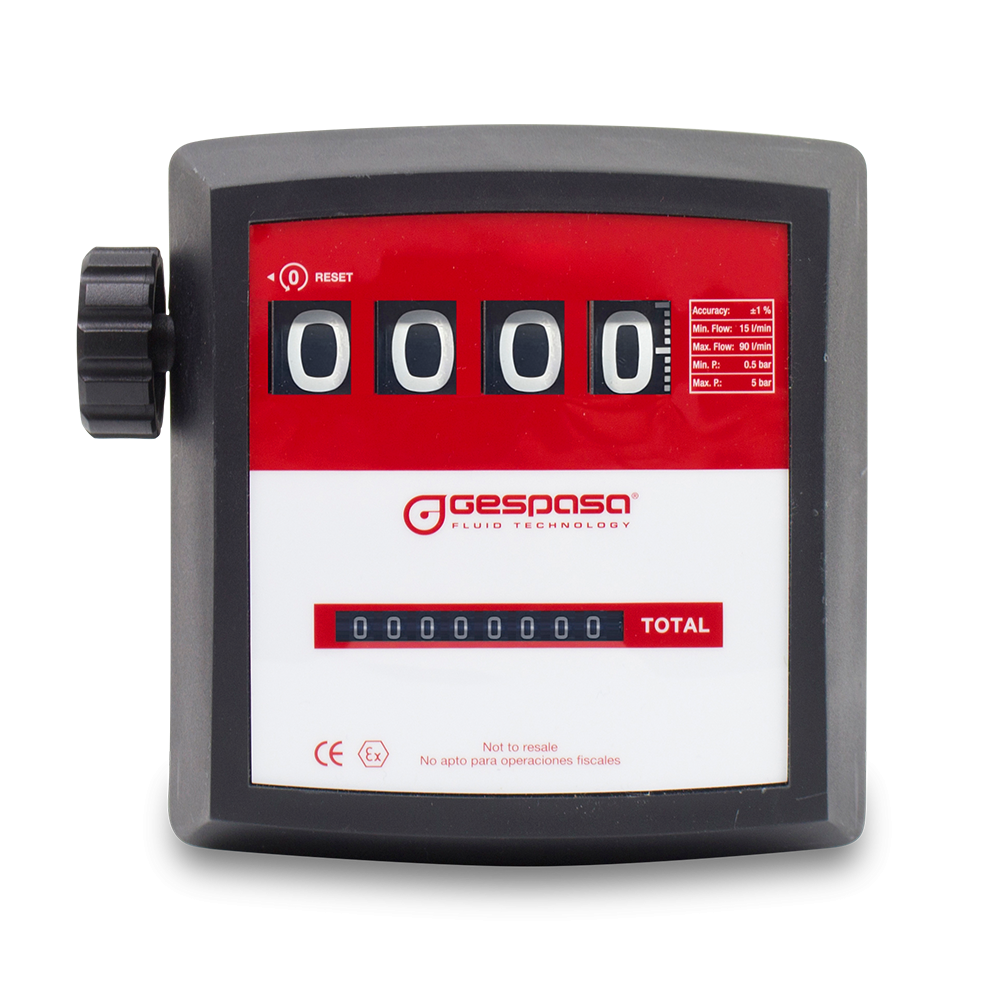

MG-84A · 4-digit mechanical aluminium meter

32360-CF00000

MG-84A · 4-digit mechanical aluminium meter with Viton joints

32370-CF00000

Aluminium body
Made of aluminium and high quality plastic materials. Its measuring chamber is fireproof of oscillant disc and it allows to transfer any type of hydrocarbon liquids (please, consult other liquids).
Flow: 15-90 l/min
Accuracy: ±1 %
Partial indicator of 4 digits and totalizer of 8 digits
Maximum operation pressure: 5 bar
Resistance pressure: 15 bar
Ambient temperature: -10 ºC / +60 ºC
ATEX IIG Category
Protection mode: own supply: Ex h IIB T5 Gb
Polyamide + Fibreglass housing
Inlet/outlet Connections: 1" GAS (BSP)
Inlet connection through threads or flanges
For private use, not suitable for fiscal operations

Size and weight (approx.):

Dim.: 180x132x165 mm (length x width x height)
Peso: 1,95 kg
