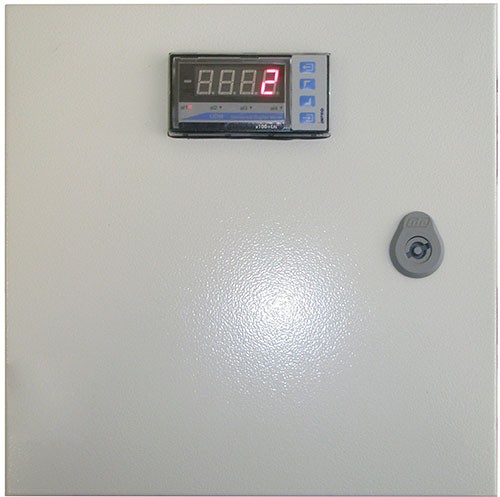

Control unit mounted in a cabinet that measures and controls the content of a tank, in litres or percentage. It is suitable for almost any oil, liquid or fluid up to 125 ºC.
APPLICATION
- Used to monitor and control the liquid level into a tank, specially for harzadous areas.
- Standard housing (DIN 43700 · 96x43x100 mm ready for panel built-in assembly.
- Flexible probe available in 1”, 1 1/2” and 2” thread adapters
- Easy installation because all the settings are adjusted from manufacturing.
TECHNICAL SPECIFICATIONS:
- Display size: 96x43x110 mm
- Voltage: 230 or 115 VAC
- Power: 13 V
- Minimum accuracy: 100 sensor points by meters
- Temperature: 40 ºC
- IP-65 protection
- Standard material: polythene
OPTIONAL:
- 1, 2 or 4 relays
- 1 output (4-20 mA)
