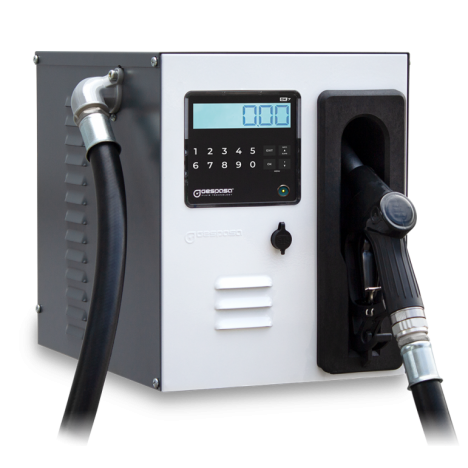

COMPACT K · ELECTRONIC SUPPLY KITS

The compact supply kits with controller are suitable for the diesel own consumption supply, measuring and control for fleet vehicles.
Its installation is suitable and advisable for transport companies, private vehicle fleets, agricultural companies...

It is composed of:

CHASSIS:

Made of steel and stainless steel
Special interior and exterior treatment against corrosion
Finished with brilliant epoxid paint
Weatherproof

PUMP:

self-suction, eccentric with self-adjusting blades

PULSER:

MGI-110 90º Hall Effect · Accuracy ±0.5 %

CONTROLLER:

GK-7 own consumption

NOZZLE

automatic

HOSE

4 m delivery diesel hose double layer, with adapters in both ends

COMPACT 50K-60-230 V · 60 users · 200 services

28540-CF00000

COMPACT 50K-130-230 V · 130 users · 500 services

28540-CF00001

IRON-50 230 VAC self-suction with self-adjusting blades
Flow rate: 40-50 l/min

Size and weight (approx.):

Size: 405x460x405 mm (length x width x height)
Weight: 22.5 kg

COMPACT 50K-60-12 V · 60 users · 200 services

28580-CF00000

COMPACT 50K-130-12 V · 130 users · 500 services

28580-CF00001

IRON-50 12 VDC self-suction of self-adjusting blades · *Please, ask for option of 24 V.
Flow rate: 40-50 l/min

Size and weight (approx.):

Size: 405x460x405 mm (length x width x height)
Weight: 18.5 kg

COMPACT 75K-60-230 V · 60 users · 200 services

28640-CF00000

COMPACT 75K-130-230 V · 130 users · 500 services

28640-CF00001

IRON-75 230 VAC self-suction with self-adjusting blades
Flow rate: 65-70 l/min

Size and weight (approx.):

Size: 405x460x405 mm (length x width x height)
Weight: 32.5 kg

COMPACT 90K-60-12 V · 60 users · 200 services

28590-CF00000

COMPACT 90K-130-12 V · 130 users · 500 services

28590-CF00001

AG-90 12 VDC self-suction with self-adjusting blades · *Ask for 24 V model
Flow rate: 70-80 l/min

Size and weight (approx.):

Dim.: 405x460x405 mm (length x width x height)
Weight: 39.5 kg

COMPACT 100K-60-230 V · 60 users · 200 services

28650-CF00000

COMPACT 100K-130-230 V · 130 users · 500 services

28650-CF00001

AG-100 230 VAC self-suction withself-adjusting blades ·*Ask for 24 V model
Flow rate: 75-85 l/min

Size and weight (approx.):

Size: 405x460x405 mm (length x width x height)
Weight: 32.5 kg
