USE

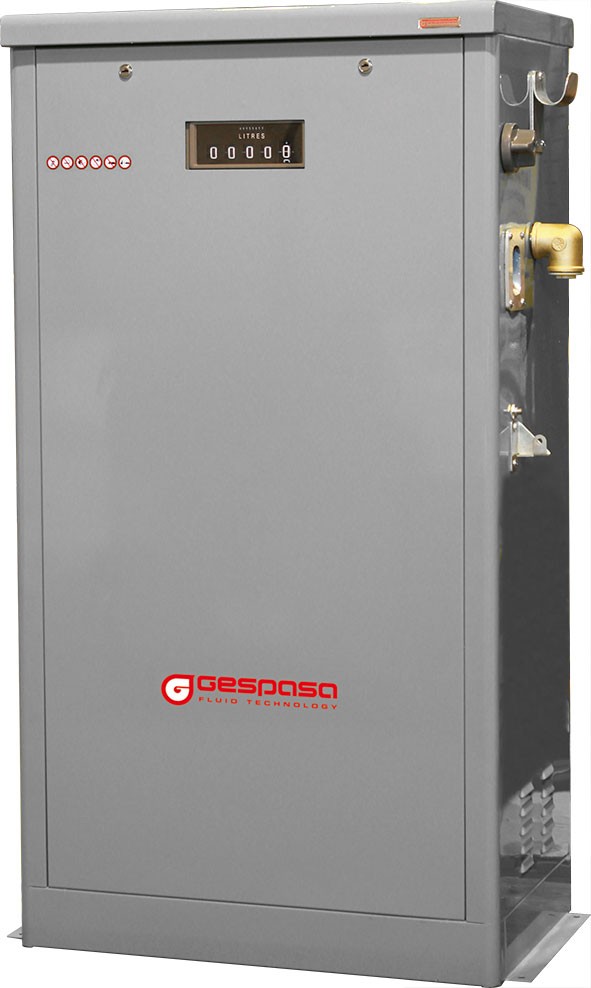

• Supply kit for the high flow fuel supply suitable for the diesel, petrol and kerosene installations
• Designed for a “heavy duty use”.

Composed of:

CHASSIS:

• Made of steel. Brilliant epoxid paint finish · Weatherproof
• It has built in an anchorage base.

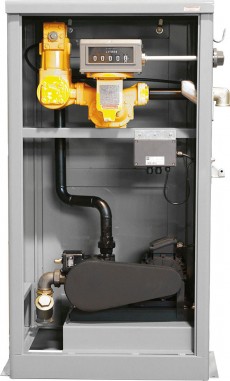

PUMP:

• BDP · self-suction vane pumps of high flow, self-suction, positive displacement, constant flow, noiseless and heavy-duty
  • Flow: 200 to 500 l/min

METER:

• Volumetric mechanical meter with degasifier in order to avoid the gas measuring
• Accuracy ±0.2 % · Repeatability: ≥0.05 %
• Manual reset
• Calibration system
• High accuracy and repeatability on the wide range of flow and high accuracy with constant flow
• Low maintenance, without metallic contact in the measuring chamber, long life service
• Aluminium body, Viton joints, litre register. Available in gallons.
• It includes a filter with a mesh of 80/170 μm (micron)

*It is also available the pulser version.

It is supplied with:

• 4 m delivery diesel hose of double layer with couplings in both ends
• PA-250 · Automatic nozzle or manual nozzle (depending on the model)
