Fuel hose-reels

Diesel

NEW

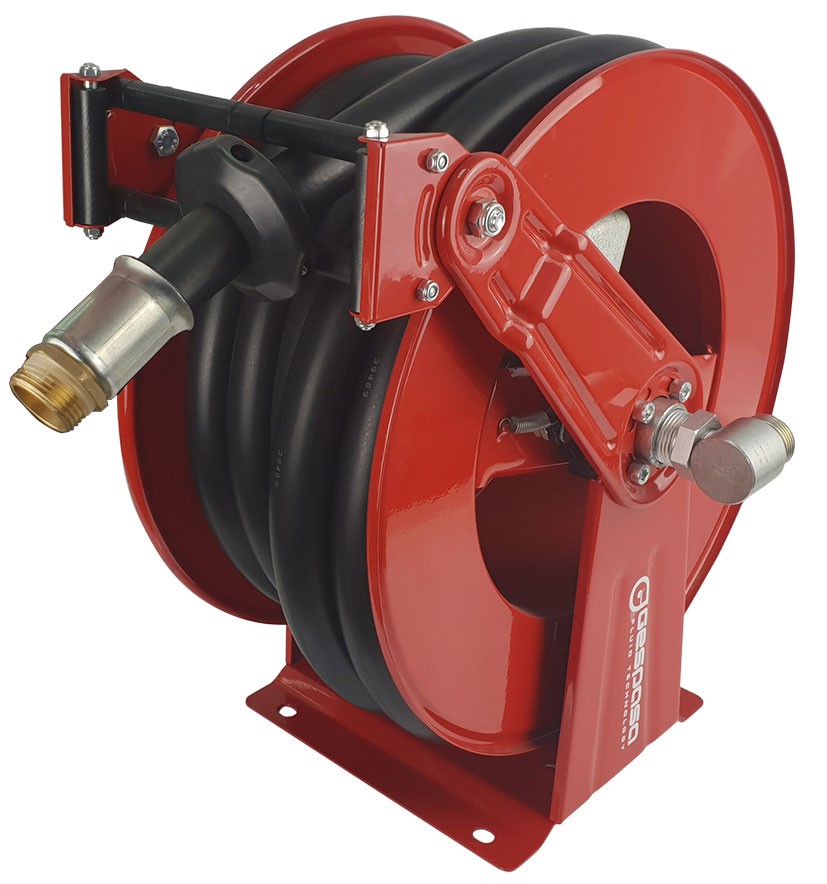

AUTOMATIC HOSE-REEL

High flow 10 or 15 m · Ø3/4" · 1"

Automatic rewind, spring-driven hose-reel with adjustable arms, in painted steel, suitable for hoses of max. 15 m (Ø3/4” hose) or 10 m (Ø1” hose)
It can be used with hoses for the supply of diesel, lubricant, compressed air and water. It is supplied with and without hose.
The wall bracket and the side frame are made in one single piece to increase the stability.
Rollers in the hose delivery for a correct hose auto-location
Antistatic double layer hose
The delivery arm can be mounted in different positions.
Max. hose-reel pressure: 100 bar · Hose pressure: 10 bar

EGC-10 1" · High flow hose-reel with 10 m Ø1" hose

807303023

Dimensions and weight (approx.):

Dim.: 310x530x490 mm (length x width x height)
Weight: 33 kg

EGC-15 3/4" · High flow hose-reel with 15 m Ø3/4" hose

807303021

Dimensions and weight (approx.):

Dim.: 310x530x490 mm (length x width x height)
Weight: 33 kg

EGC-SM 1" · High flow hose-reel without Ø1" hose

807303034

*Maximum length: 12 m 1" · 15 m 3/4"

Dimensions and weight (approx.):

Dim.: 310x530x490 mm (length x width x height)
Weight: 22 kg
