LGN-200

The extractors-decontaminators are suitable for the suction and total cleaning of the bottoms, both liquid and solid impurities, in all types of over and buried tanks.
They point up because of the quick separation of the suctioned liquid by pressurization and decanting, returning to the same tank the clean liquid and the polluted liquid on the authorized tanks.
It is also designed for emptying the own consumption tanks that could have water, mud or diesel, so as the vehicle tanks that during the refuelling you would have put the wrong fuel or have filled more litres than you want.

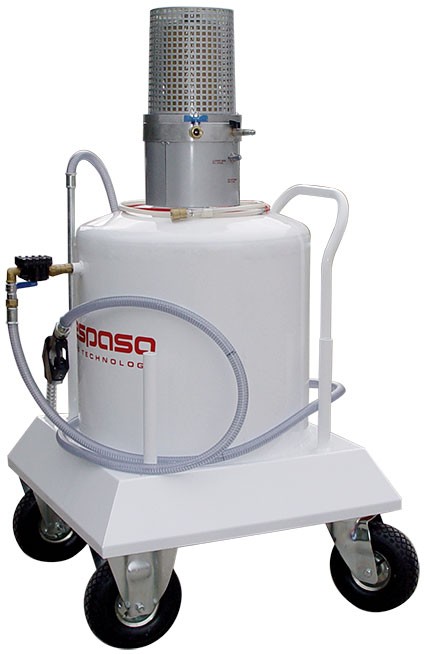

LGN-200 · Multiuse pneumatic extractor-decontaminator

48020

It is designed for making the supply and/or the extraction of the liquids derived from petroleum meanwhile it is making a filtering. It must not be used for the supply and/or the extraction of another type of liquids.
It makes the liquid transfer, either through a supply kit controlled throuhg a meter or a lower valve without making any measurement.
Extractor-decontaminator prepared for 2 extraction positions by probe.
It allows the vacuum / pressure conservation in its inner to extract/empty where there is not air inlet.

Technical data:

Extraction system based on the depression creation in the tank inner (Ventury system) (-0.8 bar)
Emptying system at pressure (+0.9 bar)
Sealed security valve, tared at 1.5 bar
Sealed valve that regulates the air inlet, tared at 0.9 bar
Air hose connection
5-µm (micron) water-repellent paper filter
Minimum pressure: 6 bar

Equipped with:
