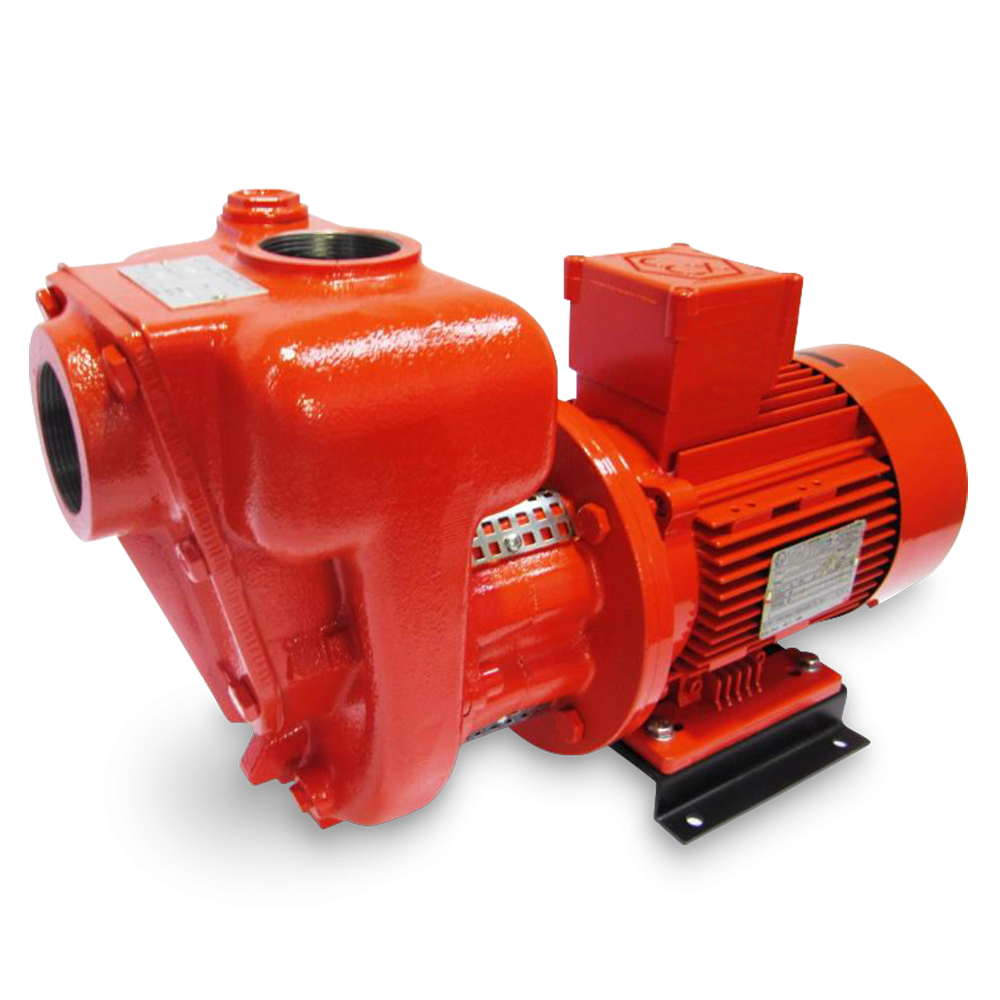

• Self-priming electric pump monobloc execution with multi-blades open impeller, suitable for pumping diesel, petrol and other compatible products, manufactured in accordance with standards 2014/34/UE (ATEX) (II 2G Ex h IIB T4 Gb).
• A suitable non-return valve is placed inside the pump body to avoid the empty after stopping.

FEATURES

• Max. suction depth: 6 m
• Max. liquid temperature: +50 °C
• Max. solid diameter: 16 mm
• Max. delivery: 26.5 m³/h · 400 l/min
• ATEX Directive: II 2G Ex h IIB T4 Gb
• Max. manometric head: 1.9 bar
• Øinlet/outlet: F2"

Materials:

• Pump body: Cast iron
• Valve body: Cast iron
• Support: Cast iron
• Impeller: Cast iron
• Motor shaft: Stainless Steel AISI 316
• Seal: Viton/Carbon/Alumina

Size and weight (approx.):

• Dim.: 260x545x345 mm (length x width x height)
• Weight: 31 kg
