HIGH FLOW PUMPS · ATEX

200-1,000 l/min

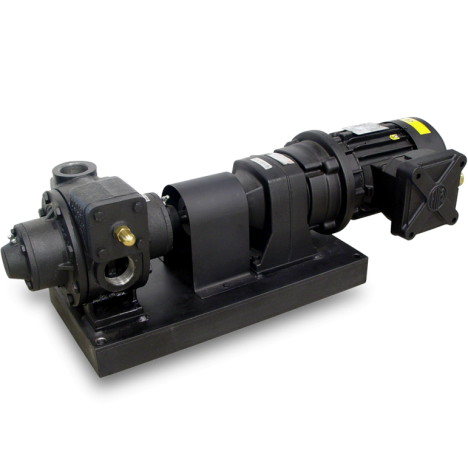

Bedplate vane pumps of high flow, self-suction, positive displacement, constant flow, inaudible and heavy-duty
The transfer is quick, uniform and inaudible.
The pump has built-in bypass valve.
It is specially intended for the transfer of high volumes, S-1 service, continuous for fuel tank charging and discharging, storage of fuel, hydrocarbon, petrol, diesel, kerosene and another non-corrosive liquid and without solid particles in suspension.

BDP-200 · F1 1/2" · Explosionproof EExd

10100

TECHNICAL DATA

PUMP

Flow: 200 l/min
Operation pressure: 3.5 bar
740 rpm
Connection through thread of 1 1/2"
Recommended diameters:
- suction-delivery connection: Ø2"
Moto-pump group performance: horizontal
Bypass built-in

MOTOR

Voltage: 230/400 VAC triphasic
Frequency: 50 Hz
Powe: 2.2 kW
IP-55 protection
Condensable protection: PTC probes
ATEX EExd IICT5 Certificate
Turn speed: 1,500 rpm
Insulation: F Class
Reducer/motor coupling: flange
Noise level: 80 dB(A)

Size and weight (approx.):

Size: 880x325x285 mm (length x width x height)
Weight: 85.5 kg

BDP-300 · F2 1/2" · Explosionproof EExd

10120

TECHNICAL DATA

PUMP

Flow: 300 l/min
Operation pressure: 3.5 bar
400 rpm
Connection through weldable flange of 2 1/2"
Recommended diameters:
- suction-delivery connection: Ø3"
Moto-pump group performance: horizontal
Bypass built-in

MOTOR:

Voltage: 230/400 VAC triphasic
Frequency: 50 Hz
Powe: 2.2 kW
IP-55 protection
Condensable protection: encapsulated
ATEX EExd IICT5 Certificate
Turn speed: 1,500 rpm
Insulation: F Class
Reducer/motor coupling: flange
Noise level: 80 dB(A)

Size and weight (approx.):

Size: 1,000x355x345 mm (length x width x height)
Weight: 125 kg

BDP-500 · F2 1/2" · Explosionproof EExd

10110

TECHNICAL DATA

PUMP

Flow: 500 l/min
Operation pressure: 3.5 bar
640 rpm
Connection through weldable flange of 2 1/2"
Recommended diameters:
- suction-delivery connection: Ø3"
Moto-pump group performance: horizontal
Bypass built-in

MOTOR

Voltage: 230/400 VAC triphasic
Frequency: 50 Hz
Powe: 4 kW
IP-55 protection
Condensable protection: encapsulated
ATEX EExd IICT5 Certificate
Turn speed: 1,500 rpm
Insulation: F Class
Reducer/motor coupling: flange
Noise level: 80 dB(A)

Size and weight (approx.):

Size: 1,050x365x345 mm (length x width x height)
Weight: 148.5 kg

BDP-1000 · F3" · Explosionproof EExd

10130

TECHNICAL DATA

PUMP

Flow: 1,000 l/min
Operation pressure: 3.5 bar
640 rpm
Connection through weldable flange of 3"
Recommended diameters:
- suction-delivery connection: Ø4"
Moto-pump group performance: horizontal
Bypass built-in

MOTOR

Voltage: 400/690 VAC triphasic
Frequency: 50 Hz
Powe: 7.5 kW
IP-55 protection
Condensable protection: encapsulated
ATEX EExd IICT5 Certificate
Turn speed: 1,500 rpm
Insulation: F Class
Reducer/motor coupling: flange
Noise level: 80 dB(A)

Size and weight (approx.):

Size: 1,264x420x405 mm (length x width x height)
Weight: 227 kg
