Petrol

Diesel

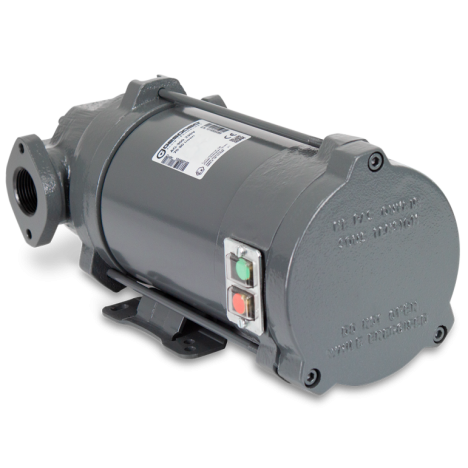

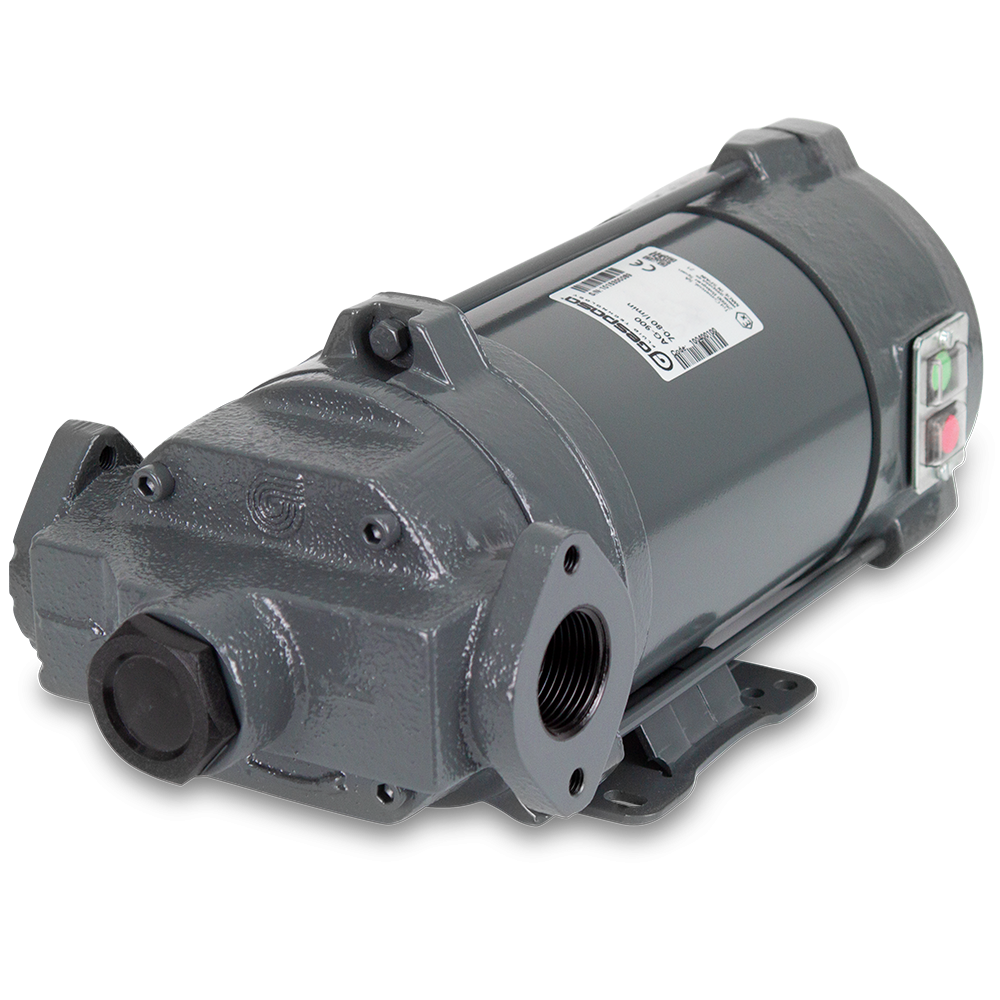

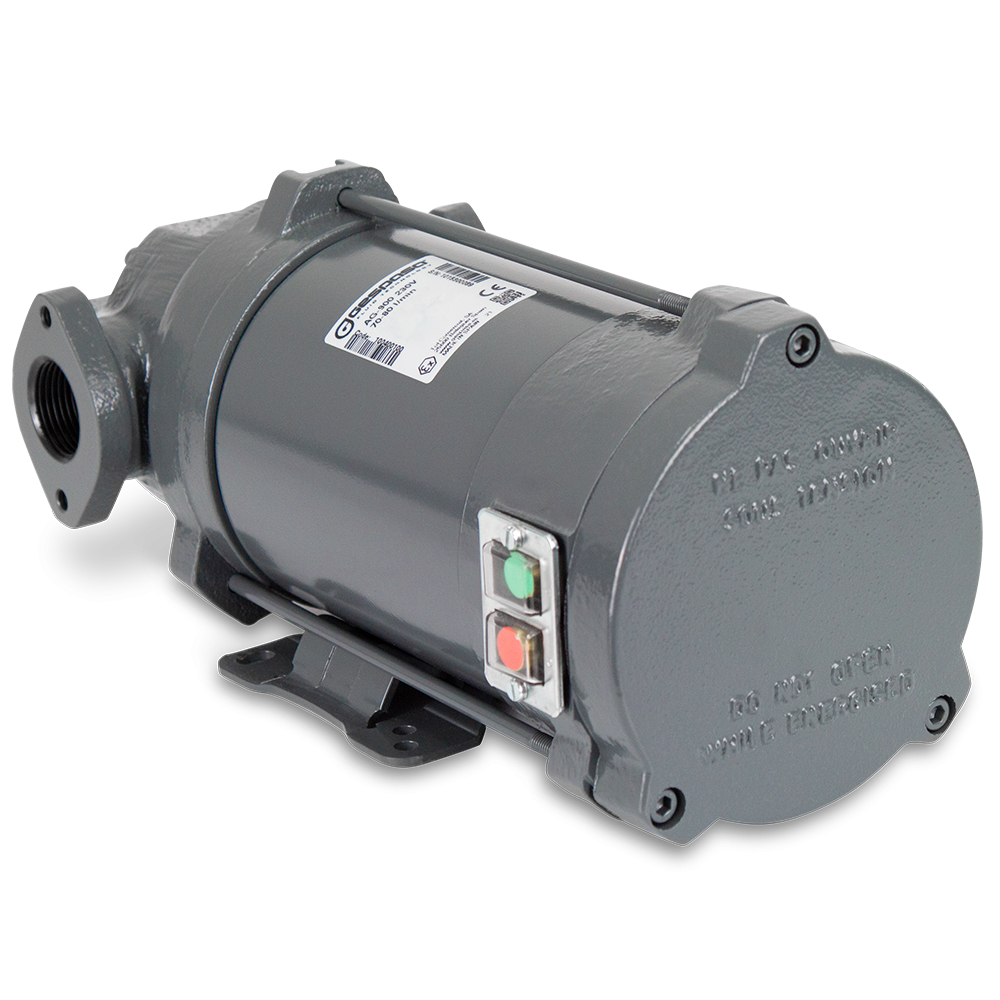

AG-900 12 VDC

EExd · 0.37 kW · 80 l/min

AG-900 12 VDC 70-80 l/min

10070

Self-suction - self-priming, explosionproof, eccentric with self-adjusting blades
With recirculation bypass
Suction: 2.7 m
Priming pipe suction: 5 m
Free flow: 70-80 l/min
Consumption: 42-50 A
Motor: 0.37 kW 12 VDC EExd
1,650 rpm
S2 20´ operation
IP-55 protection
Operation temperature: -10 ºC · +40 ºC
ATEX Class: II2G
Protection mode (own supply): Ex h IIB T4 Gb
With thermal protector
Connection: through F1" (BSP) threads and flanges
ON/OFF switch
1.5 m cable
Anti-rust treatment

Size and weight (approx.):

Dim.: 400x165x155 mm (length x width x height)
Weight: 19 kg

Optional:

- F1" aluminium flange kit

800003022
