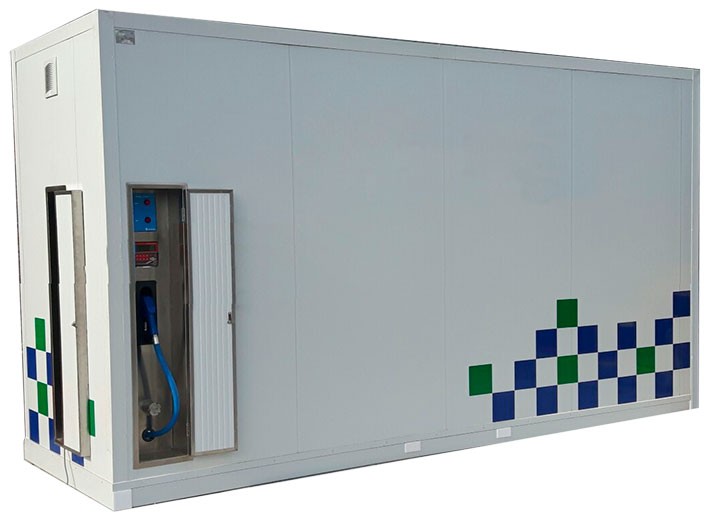

BLUEBOX EX-F

The BLUEBOX EX-F ECO are mainly designed for the installation of an own consumption dispenser integrated into the tank. Its usual location is outdoors and they are suitable for transport companies, quarries, public works or wherever there is not required a retail sale dispenser.

SPECIFICATIONS
• High density polythene tank
• 30 mm insulated panel
- Fire Classification: CS3d0
- Overall heat transfer coefficient: 0.662 W/m²K
• Double vacuum filter
• Monoblock galvanised steel base
• Stainless steel adapters, valves and pipe
• 2” stainless Camlock coupling filling
• Analogical level indicator
• Access lock door
• Optical warning of maximum-minimum capacity
• To choose the dispenser location

Built-in dispenser:
- Magnetic nozzle support
- Volumetric meter
- Automatic nozzle

PUMP
• Suitable for AdBlue, AUS32, DEF
• Flow: 70 l/min
• Power 0.75 HP 230 V single-phase
• Protection IP-68 · class F
• Stainless steel
• Security switch
• Submersible pump

OPTIONAL

Telemetry
Corporate image
Stock control
Dual system
TODO filling valve

BLUEBOX EX-F 15 ECO · 1,500-litre capacity

Dim. (approx.): 2,230x870x2,180 mm (length x width x height)

BLUEBOX EX-F 20 ECO · 2,000-litre capacity

Dim. (approx.): 2,220x1,050x2,180 mm (length x width x height)

BLUEBOX EX-F 30 ECO · 3,000-litre capacity

Dim. (approx.): 2,830x1,140x1,950 mm (length x width x height)

BLUEBOX EX-F 50 ECO · 5,000-litre capacity

Dim. (approx.): 2,780x2,010x2,280 mm (length x width x height)
