Kits for the supply and measurement of AdBlue/DEF to light vehicles.
COMPOSED OF:

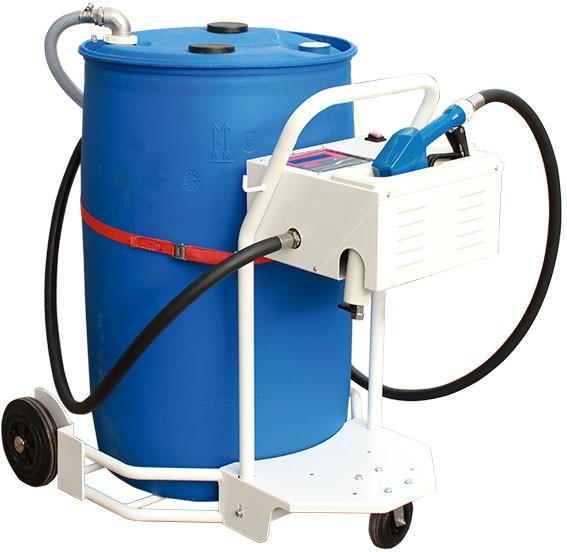

- Transport trolley for 200-litre drum with an extra-resistant tubular frame. Two fixed wheels and a mobile wheel for a better ergonomics and mobility. The trolley has a security strap for the drum in order to avoid any accidental leak (drum not included). It has built in some hooks to reel the cable.
- Protected electric transfer kit:
- The kit of 230 VAC is composed of a diaphragm pump of 230 VAC (110 VAC optional) and the MGI-40Blue electronic gear pulser.
- The kit of 12 VDC is composed of a diaphragm pump of 12 VDC with pressure switch, connected to a 12 VDC battery (chassis built in) for an autonomous use of the kit
- Battery charger with 230 V connection. Control panel of the battery charger built in the chassis lateral.
- Kit flow:
- 230 VAC · 6.5 l/min · 3 bar
- 12 VAC · 10 l/min · 2.4 bar
- Measuring accuracy: ±0.8 %

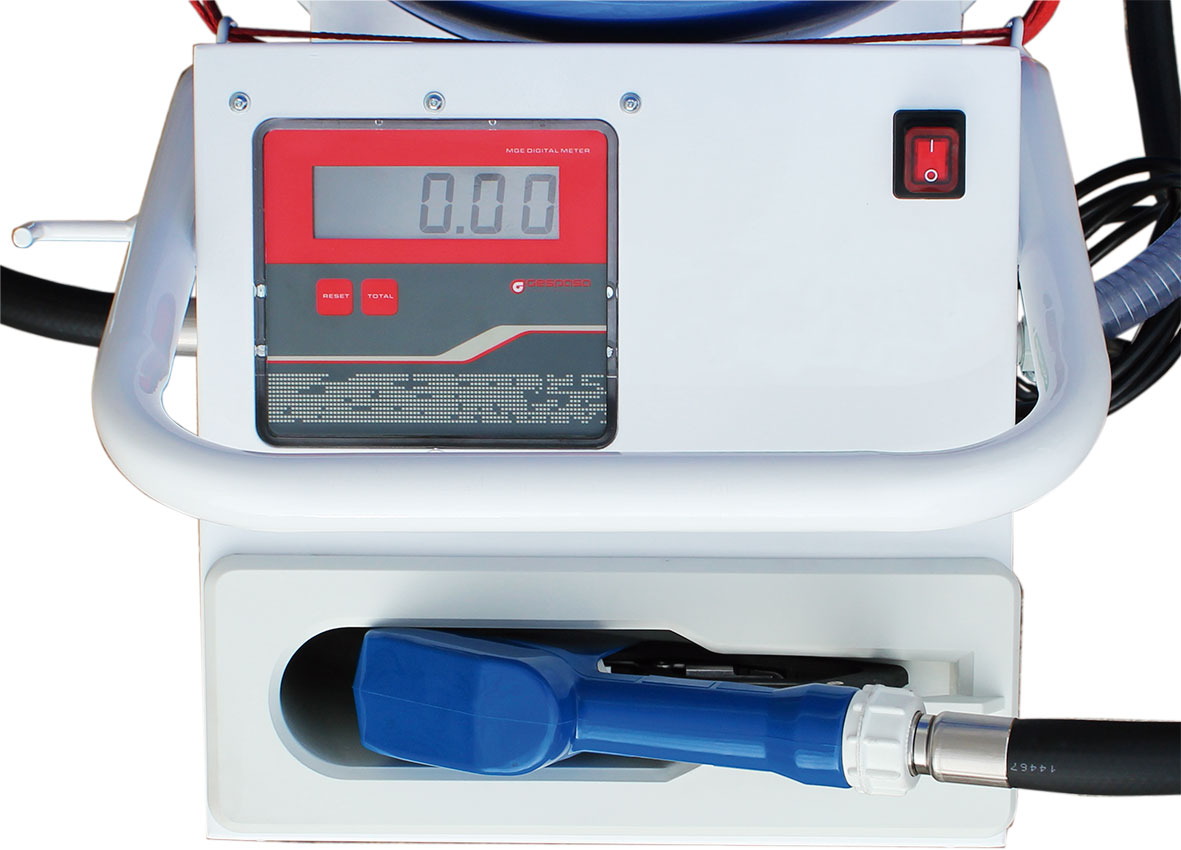

- Control console with a large size display in order to see the supplied litres. Keys: TOTAL: it shows the total supplied litres. RESET: it puts the partial of the supplied litres at 0.
- Nozzle hanger
- Automatic nozzle for AdBlue/DEF
- 4 m AdBlue/DEF hose
- Suction pipe with adapter to 200-litre drum
